Dirtbike · Electric · 9 plans

Rocket 1300W

01

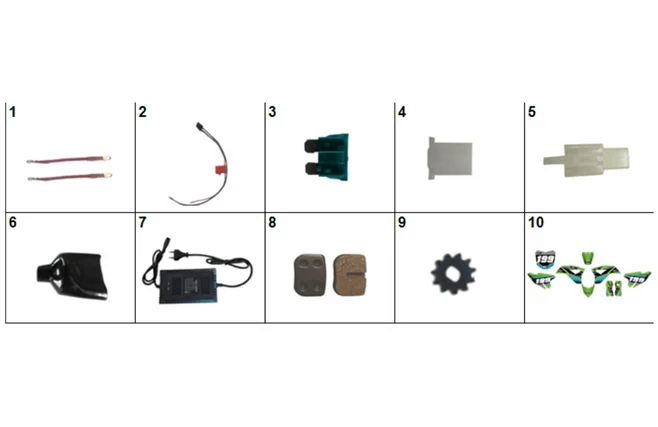

Bundles

15 components
Bundles
Fig. 01
1 REVERSE HARNESS (PAIR) 10727 Sold out $2.99 Notify me
2 ED8L-1 FUSE BOX HARNESS 30102 Sold out $13.99 Notify me
3 FUSE - 35A 10438 Sold out $2.99 Notify me
3 FUSE - 25A 29992 Sold out $2.99 Notify me
4 MALE CONNECTOR 10444 Sold out $2.99 Notify me
6 HARNESS COVER 10733 Sold out $2.99 Notify me
7 48V LITHIUM BATTERY CHARGER 30104 Sold out $137.99 Notify me
8 BRAKE PADS (HYDRAULIC) 30103 Sold out $9.99 Notify me
9 ENGINE SPROCKET 219H- 10 TEETH 31229 Sold out $9.99 Notify me
10 GRAPHIC KIT ROCKET 2021 RED 32464 Sold out $33.99 Notify me
10 GRAPHIC KIT ROCKET 2021 ORANGE 32465 Sold out $33.99 Notify me
10 GRAPHIC KIT ROCKET 2021 GREEN 32466 Sold out $33.99 Notify me
10 GRAPHIC KIT ROCKET 2021 PINK 32467 Sold out $33.99 Notify me
10 GRAPHIC KIT ROCKET 2021 YELLOW 32468 Sold out $33.99 Notify me
10 GRAPHIC KIT ROCKET 2021 BLUE 32469 Sold out $33.99 Notify me
02

Electric parts

14 components
Electric parts
Fig. 02
1 CHARGING PORT 10712 Sold out $9.99 Notify me
3 CONTROLLER 48V/1300W 30093 Sold out $134.99 Notify me
4 BOLT - M6*16 10016 Sold out $2.99 Notify me
5 NUT - M6 10566 Sold out $2.99 Notify me
6 NUT - M6 10566 Sold out $2.99 Notify me
7 WASHER - Φ6*16*1.5 10049 Sold out $2.99 Notify me
8 SPACER Φ8*14*20 30096 Sold out $2.99 Notify me
9 48V/1300W MOTOR 30098 Sold out $523.99 Notify me
10 BOLT - M6*80 30123 Sold out $2.99 Notify me
11 BOLT - M6*25 10256 Sold out $2.99 Notify me
12 LITHIUM BATTERY 48V13AH 30099 Sold out $499.99 Notify me
13 260MM DRUM BELT 30100 Sold out $2.99 Notify me
14 KEY SWITCH 30101 Sold out $19.99 Notify me
03

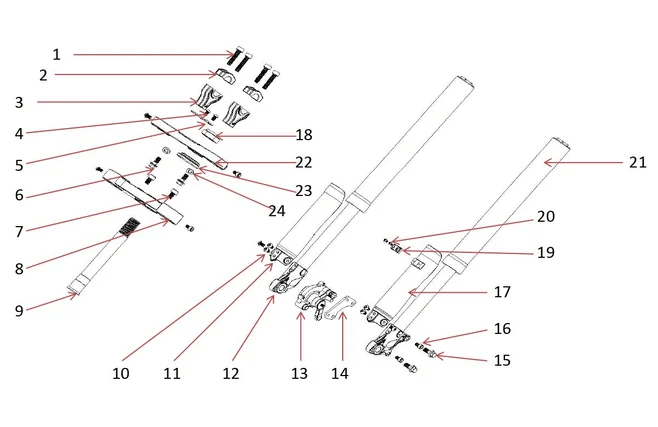

Fork

24 components
Fork
Fig. 03
1 BOLT - M6*16 10368 Sold out $2.99 Notify me
2 UPPER SADDLES (PAIR) 30023 Sold out $12.99 Notify me
3 LOWER SADDLES (PAIR) 30024 Sold out $19.99 Notify me
4 BOLT - M6*12 10031 Sold out $2.99 Notify me
5 FRONT PLATE BRACKET 30025 Sold out $2.99 Notify me
6 BOLT M10*1.5*25 30042 Sold out $2.99 Notify me
7 BOLT - M8*16 10209 Sold out $2.99 Notify me
8 LOWER SPLINTAGE 30027 Sold out $39.99 Notify me
9 STEERING COLUMN 195MM 30028 Sold out $19.99 Notify me
10 BOLT M6*8 10159 Sold out $2.99 Notify me
11 RIGHT FORK PROTECTION 30029 Sold out $5.99 Notify me
12 FORK Φ39*Φ42 L:630MM (RIGHT) 30034 Sold out $86.99 Notify me
13 FRONT BRAKE ROCKET XL 33497 Sold out $99.99 Notify me
14 BRAKE BRACKET 30038 Sold out $5.99 Notify me
15 BOLT - M6*25 10256 Sold out $2.99 Notify me
16 BOLT - M6*12 10031 Sold out $2.99 Notify me
17 LEFT FORK PROTECTION 30030 Sold out $5.99 Notify me
18 COLUMN NUT M22*1.0 30039 Sold out $6.99 Notify me
19 BRAKE CABLE HOLDER 30040 Sold out $2.99 Notify me
20 CROSS HEAD BOLT - M4*12 10387 Sold out $2.99 Notify me
21 FORK Φ39*Φ42 L:630MM (LEFT) 30035 Sold out $86.99 Notify me
22 UPPER SPLINTAGE 30026 Sold out $39.99 Notify me
23 NUT M22 30041 Sold out $5.99 Notify me
24 WASHER - Φ10 10054 Sold out $2.99 Notify me
04

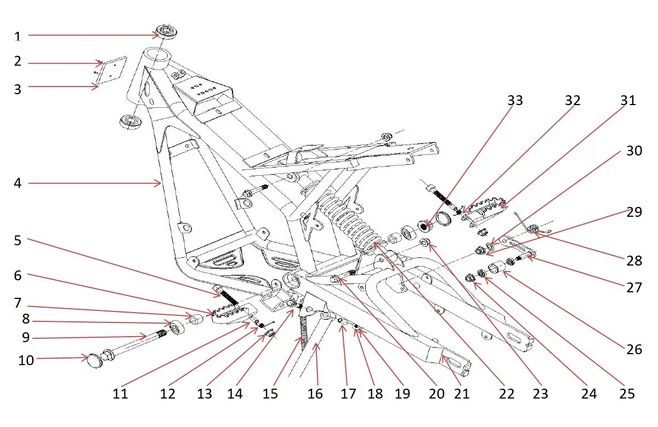

Frame

31 components
Frame
Fig. 04
2 RIVET-Φ3.2*9 10230 Sold out $2.99 Notify me
4 FRAME ROCKET 1300W 29997 Sold out $122.99 Notify me
5 BOLT M6X40 27625 Sold out $2.99 Notify me
6 LEFT FOOTREST 29998 Sold out $13.99 Notify me
7 SPACER Φ12.5*Φ20*5 30000 Sold out $2.99 Notify me
8 BEARING 6200 30001 Sold out $13.99 Notify me
9 SHAFT M12*180 30011 Sold out $12.99 Notify me
10 AXIS CAP D=32 30002 Sold out $2.99 Notify me
11 SPACER Φ8*Φ6*24.2 29947 Sold out $2.99 Notify me
12 SPRING FOOTREST - LEFT 10008 Sold out $2.99 Notify me
13 NUT - M6 10416 Sold out $2.99 Notify me
14 BOLT M10*1.5*35 30012 Sold out $2.99 Notify me
15 SPRING Φ2.5×Φ14.5×100MM 30003 Sold out $2.99 Notify me
16 STAND L:295MM 30004 Sold out $16.99 Notify me
17 SPACER - Φ16XΦ10.2X20 10011 Sold out $2.99 Notify me
18 WASHER - Φ10Φ20*1.5 30013 Sold out $2.99 Notify me
19 LOCK NUT - M10*1.5 10195 Sold out $2.99 Notify me
20 BOLT - M10X40X1.25 30014 Sold out $2.99 Notify me
21 SWINGARM ROCKET 13000W 30007 Sold out $84.99 Notify me
22 SHOCK ABSORBER Φ8.0*250 30008 Sold out $104.99 Notify me
23 LOCK NUT - M10*1.25 10196 Sold out $2.99 Notify me
24 NUT - M6 10416 Sold out $2.99 Notify me
25 698Z BEARING 29956 Sold out $4.99 Notify me
26 CHAIN ​​WHEEL 29955 Sold out $4.99 Notify me
27 CHAIN ​​WHEEL SUPPORT 30009 Sold out $4.99 Notify me
30 SPACER - Φ8*Φ16*1.0 30015 Sold out $2.99 Notify me
31 RIGHT FOOTREST 29999 Sold out $13.99 Notify me
32 SPRING, FOOTREST - RIGHT 10021 Sold out $2.99 Notify me
33 LOCK NUT - M12*1.25 10535 Sold out $2.99 Notify me
05

Front wheel

12 components
Front wheel
Fig. 05
1 SHAFT M12×1.25×200 30043 Sold out $5.99 Notify me
2 SPACER Φ12.5*Φ20*25 30044 Sold out $3.99 Notify me
3 BOLT M6*16 29896 Sold out $2.99 Notify me
4 BRAKE DISC - Φ180MM*2.0 30045 Sold out $19.99 Notify me
5 SPACER Φ12.5*Φ16*54 30046 Sold out $2.99 Notify me
6 FRONT RIM 1.4*14 30047 Sold out $78.99 Notify me
7 14 INCHES TUBE 30048 Sold out $7.99 Notify me
8 TIRE 60/100-14 30049 Sold out $45.99 Notify me
9 BEARING 6301 30050 Sold out $7.99 Notify me
10 SPACER Φ12.5*Φ20*23 30051 Sold out $2.99 Notify me
11 LOCK NUT - M12*1.25 10535 Sold out $2.99 Notify me
12 FRONT BRAKE ROCKET XL 33497 Sold out $99.99 Notify me
06

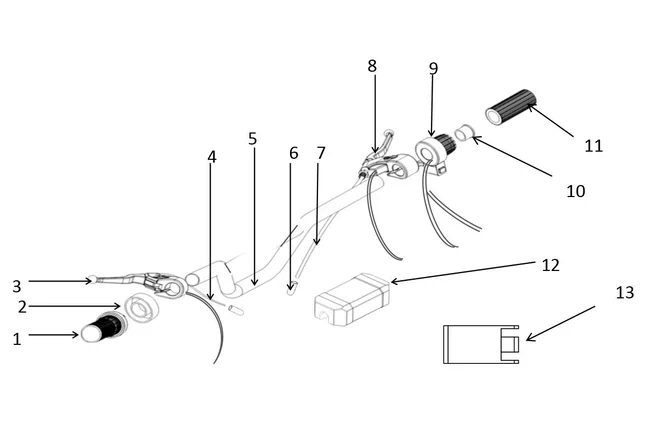

Handlebar

13 components
Handlebar
Fig. 06
1 LEFT HANDLE 30016 Sold out $11.99 Notify me
2 LEFT HANDLE BRACKET 30017 Sold out $2.99 Notify me
3 REAR BRAKE ROCKET XL 33496 Sold out $99.99 Notify me
4 REAR BRAKE CABLE - 1100X1250 10040 Sold out $9.99 Notify me
5 HANDLEBAR 600MM 30018 Sold out $24.99 Notify me
6 BRAKE CABLE CAP 10041 Sold out $2.99 Notify me
7 FRONT BRAKE CABLE - 850X1000 10042 Sold out $9.99 Notify me
8 FRONT BRAKE ROCKET XL 33497 Sold out $99.99 Notify me
9 THROTTLE HANDLE 30110 In stock $49.99
10 THROTTLE HANDLE 30110 In stock $49.99
11 PULL HANDLE END 30020 Sold out $11.99 Notify me
12 HANDLEBAR FOAM 30021 Sold out $7.99 Notify me
13 HANDLEBAR FOAM PROTECTION 30022 Sold out $2.99 Notify me
07

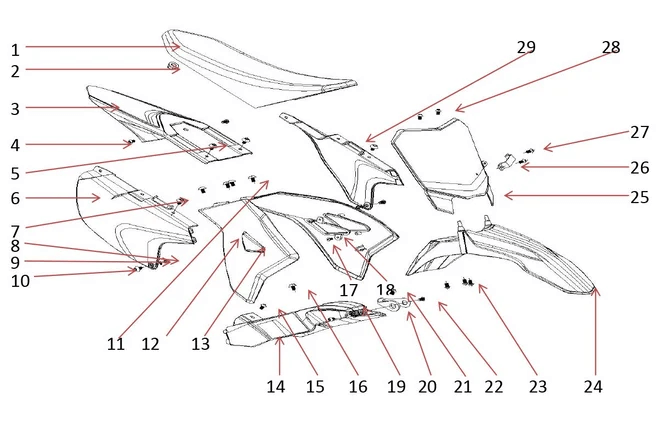

Plastic kit

29 components
Plastic kit
Fig. 07
1 SADDLE ROCKET BLACK 30067 Sold out $32.99 Notify me
3 REAR FENDER 30068 Sold out $17.99 Notify me
4 BOLT - M6*12 10031 Sold out $2.99 Notify me
5 M5-25 PHILLIPS BOLT 30081 Sold out $2.99 Notify me
6 SIDE PLATE ROCKET RIGHT 30069 Sold out $24.99 Notify me
7 M5-25 PHILLIPS BOLT 30081 Sold out $2.99 Notify me
8 NUT - M6 10566 Sold out $2.99 Notify me
9 RUBBER WASHER Φ8*Φ25*14 30066 Sold out $2.99 Notify me
10 BOLT - M6*25 10256 Sold out $2.99 Notify me
11 CROSS HEAD BOLT - M5*8 29931 Sold out $2.99 Notify me
12 RIGHT ROCKET TANK HOLE 30071 Sold out $24.99 Notify me
13 PLASTIC TRIANGLE ROCKET RIGHT 30074 Sold out $4.99 Notify me
14 ROCKET TANK 30073 Sold out $17.99 Notify me
15 BOLT - M6*20 10112 Sold out $2.99 Notify me
16 BOLT - M6*12 10031 Sold out $2.99 Notify me
17 BOLT - M4*10 10383 Sold out $2.99 Notify me
18 LEFT ROCKET PLASTIC TRIANGLE 30075 Sold out $4.99 Notify me
19 TANK HATCH 30076 Sold out $9.99 Notify me
20 TANK DOOR BRACKET 30077 Sold out $2.99 Notify me
21 BOLT - M6*12 10031 Sold out $2.99 Notify me
22 BOLT - M6*12 10031 Sold out $2.99 Notify me
23 BOLT - M6*12 10031 Sold out $2.99 Notify me
24 ROCKET FRONT FENDER 30078 Sold out $19.99 Notify me
25 ROCKET FRONT PLATE 30079 Sold out $17.99 Notify me
26 BRAKE HOSE HOLDER 30080 Sold out $2.99 Notify me
27 CROSS HEAD BOLT - M4*12 10387 Sold out $2.99 Notify me
28 BOLT - M6*12 10031 Sold out $2.99 Notify me
29 LEFT ROCKET SIDE PLATE 30070 Sold out $24.99 Notify me
30 LEFT ROCKET TANK HOLE 30072 Sold out $24.99 Notify me
08

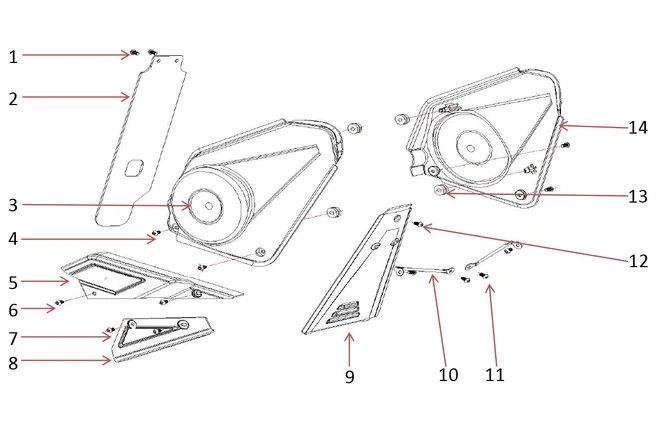

Plastic parts

14 components
Plastic parts
Fig. 08
1 BOLT - M6*12 10031 Sold out $2.99 Notify me
2 ROCKET REAR MUDFLAP 30083 Sold out $9.99 Notify me
3 RIGHT ROCKET FRAME PLASTIC 30084 Sold out $24.99 Notify me
4 BOLT M6*8 10159 Sold out $2.99 Notify me
5 UPPER CHAIN ​​GUARD 30086 Sold out $12.99 Notify me
6 BOLT M6*8 10159 Sold out $2.99 Notify me
7 BOLT M6*8 10159 Sold out $2.99 Notify me
8 LOWER CHAIN ​​GUARD 30087 Sold out $12.99 Notify me
9 FRONT FRAME PLASTIC 30082 Sold out $14.99 Notify me
10 FRONT FRAME PLASTIC SUPPORT 30088 Sold out $2.99 Notify me
11 BOLT - M6*16 10016 Sold out $2.99 Notify me
12 BOLT - M6*12 10031 Sold out $2.99 Notify me
13 RUBBER WASHER 29976 Sold out $2.99 Notify me
14 LEFT ROCKET FRAME PLASTIC 30085 Sold out $24.99 Notify me
09

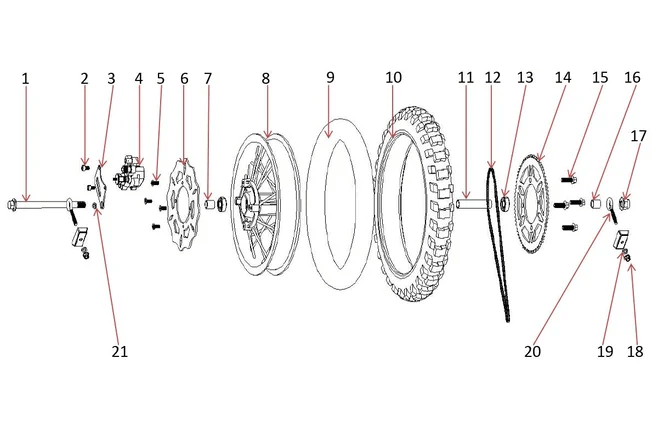

Rear wheel

22 components
Rear wheel
Fig. 09
1 SHAFT M12×1.25×180 30052 Sold out $9.99 Notify me
2 BOLT - M6*12 10031 Sold out $2.99 Notify me
3 BRAKE CALIPER BRACKET 30053 Sold out $4.99 Notify me
4 REAR BRAKE ROCKET XL 33496 Sold out $99.99 Notify me
5 BOLT M6*16 29896 Sold out $2.99 Notify me
6 BRAKE DISC - Φ180MM*2.0 30045 Sold out $19.99 Notify me
7 SPACER Φ12.5*Φ20*17 30055 Sold out $3.99 Notify me
8 REAR WHEEL 1.4*12 30057 Sold out $74.99 Notify me
9 12 INCHES TUBE 30058 Sold out $7.99 Notify me
10 TIRE 3.00-12 30059 Sold out $52.99 Notify me
11 SPACER Φ12*Φ16*72 30060 Sold out $2.99 Notify me
12 CHAIN ​​219H-126 30065 Sold out $19.99 Notify me
13 BEARING 6301 30050 Sold out $7.99 Notify me
14 CROWN 219H76T 30061 Sold out $24.99 Notify me
15 BOLT - M8*16 10209 Sold out $2.99 Notify me
16 SPACER Φ12.5*Φ20*34 30062 Sold out $4.99 Notify me
17 LOCK NUT - M12*1.25 10535 Sold out $2.99 Notify me
18 NUT - M6 10566 Sold out $2.99 Notify me
19 GROWER WASHER Φ6 10113 Sold out $2.99 Notify me
20 CHAIN ​​TENSIONER Φ12*45 30063 Sold out $2.99 Notify me
21 GROWER WASHER Φ6 10113 Sold out $2.99 Notify me
22 WASHER Φ12*25*3 30064 Sold out $2.99 Notify me
