RXF MX 110

Home - Plans - RXF MX 110

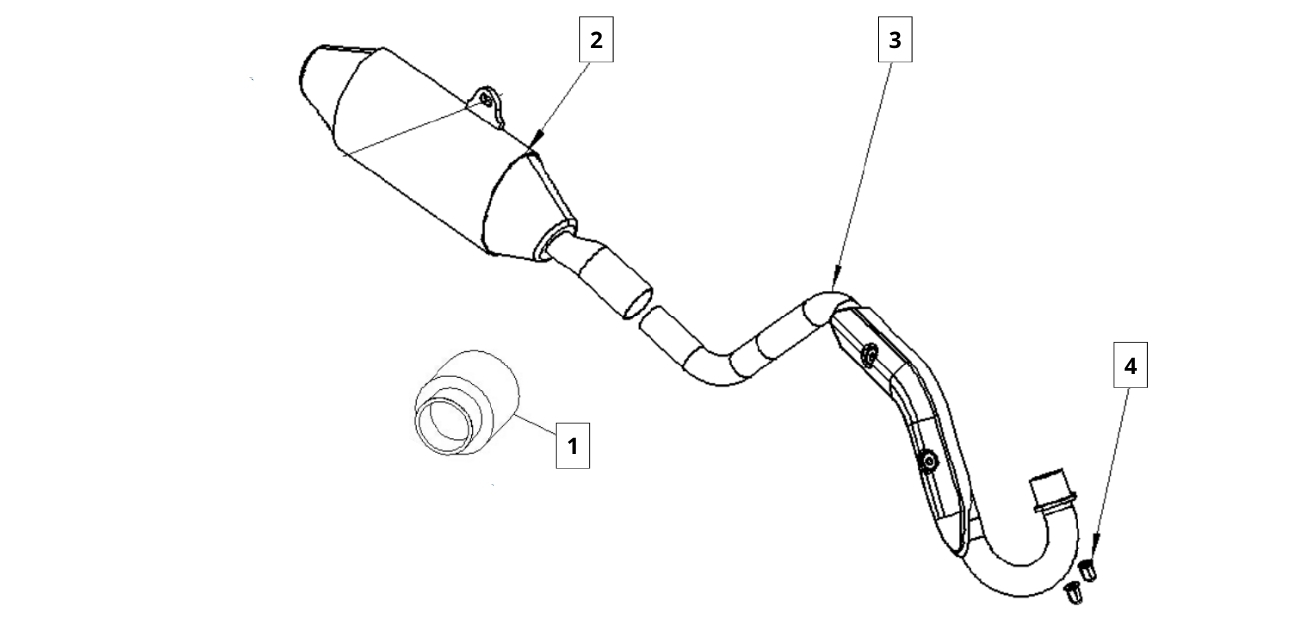

AIR FILTER/MUFFLER

AIR FILTER/MUFFLER
1A
PERFO - VOLT PERFORMANCE AIR FILTER 45MM BLACK 380-021

$29.99 USD

1A
PERFO - VOLT PERFORMANCE AIR FILTER 45MM BLUE 380-029

$29.99 USD

1B
PERFO - VOLT PERFORMANCE AIR FILTER 45MM GREEN 380-033

$29.99 USD

1C
PERFO - VOLT PERFORMANCE AIR FILTER 45MM RED 380-025

$29.99 USD

4
NUT M6X22 (2 PCS) 375-312

$4.99 USD

5
EXHAUST HOOP (110-125CC) 372-309

$19.99 USD

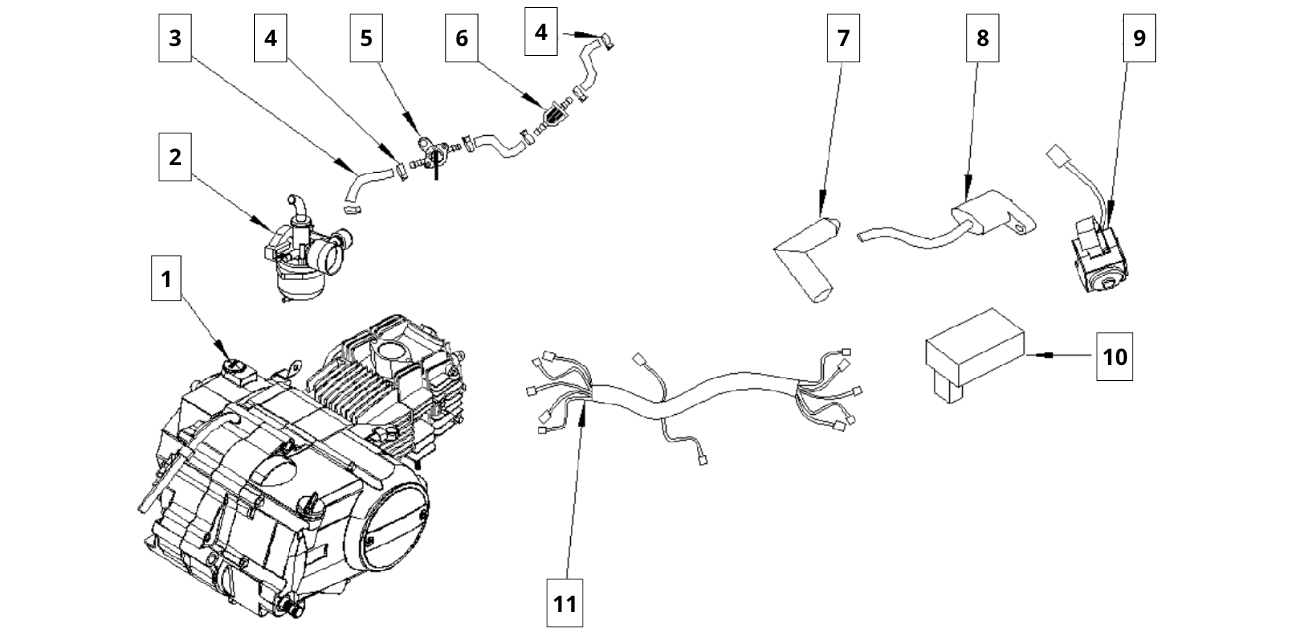

ELECTRIC + ENGINE

ELECTRIC + ENGINE
1
ENGINE 110CC YTX 342-100

$399.99 USD

2
Carburator 379C-001

$71.99 USD

3
FUEL HOSE (3ft.) 375-305

$9.99 USD

4
FUEL LINE CLIP (2 Pcs) 375-304

$1.99 USD

5
FUEL VALVE 375-306

$9.99 USD

6
FUEL FILTER 375-303

$4.99 USD

7
COIL 2-PRONG 372-011

$29.99 USD

8
SPARK PLUG CAP 375-013

$9.99 USD

9
STOP SWITCH 375-018

$29.99 USD

10
CDI 5-PINS 016-020

$25.99 USD

11
Harness 379C-002

$17.99 USD

12
STATOR PLATE 2 COIL 375-021

$79.99 USD

13
IGNITION KEY 375-016

$24.99 USD

FOOT PEGS / SIDE STAND

FOOT PEGS / SIDE STAND
1
Chain roller assy 379C-024

$3.99 USD

2
Side stand assy (pack as set) 379C-025

$28.99 USD

3
bolts (pack as set) 379C-026

$3.99 USD

4
Foot brake assy 379C-027

$57.99 USD

5
Sub-frame 379C-031

$79.99 USD

FRAME

FRAME
1
FOOT PEG SPRING ASSY 377-400

$14.99 USD

2
Plastic frame cover Left+Right 379C-012

$3.99 USD

3
main switch 379C-013

$3.99 USD

4
fuel tank switch 379C-014

$5.99 USD

5
HOUR COUNTER RXF 377-004

$39.99 USD

6
TOP ENGINE BRACKETS JUNIOR (2PCS) 379-402

$19.99 USD

7
SKID PLATE JUNIOR 379-405

$49.99 USD

8
FRAME HARDWARE (Pack as set) 379C-015

$10.99 USD

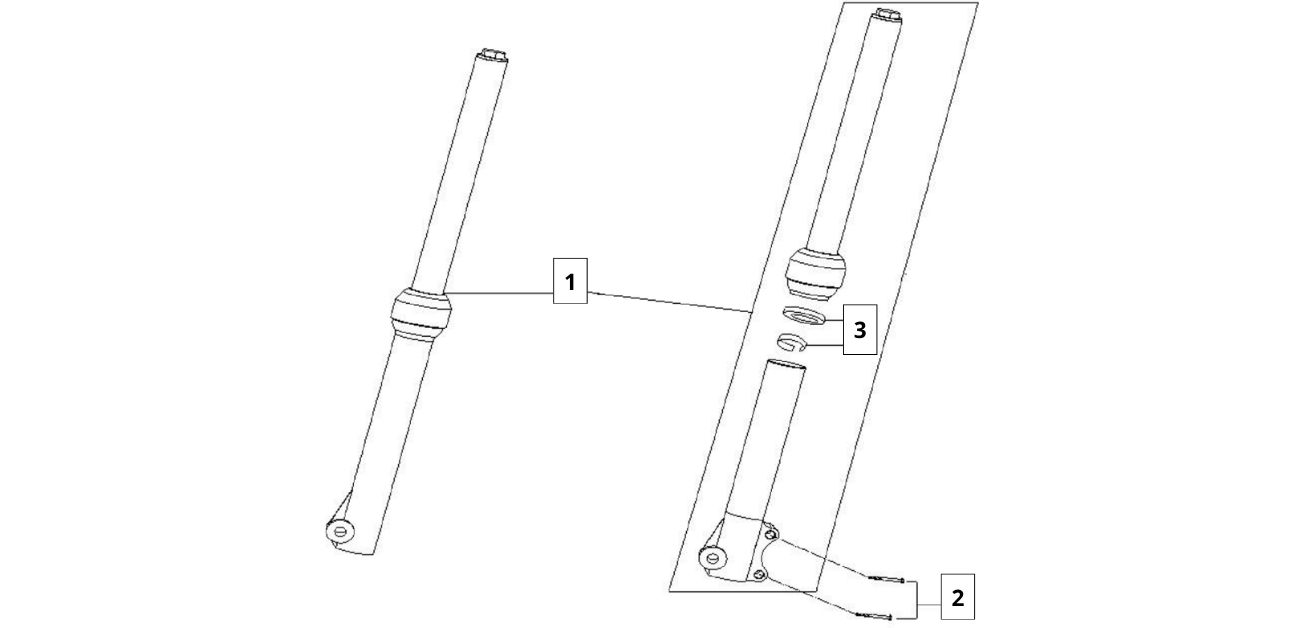

FRONT FORK

FRONT FORK
1
FRONT FORK 33MM x 660MM 342-426

$159.99 USD

Sold out

2
Forks bolts 379C-003

$3.99 USD

Sold out

3
Forks seal (2x) 379C-004

$39.99 USD

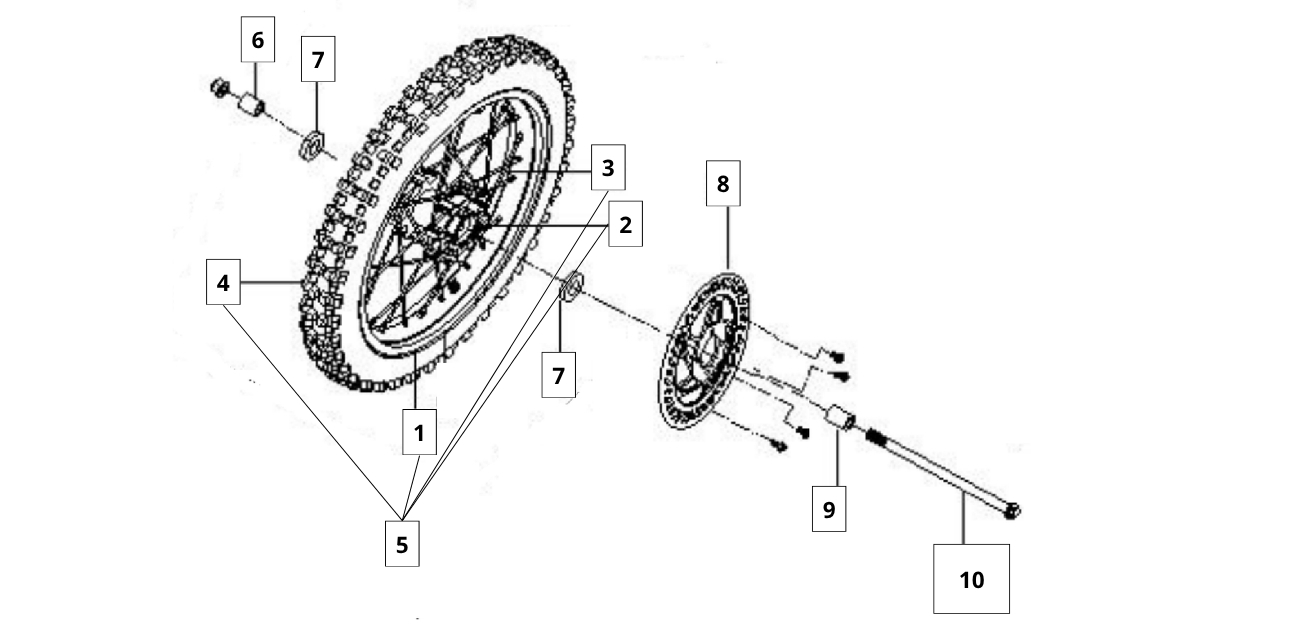

FRONT WHEEL/FRONT BRAKE ASSY

FRONT WHEEL/FRONT BRAKE ASSY
1
FRONT TUBE 60/100-14 375-600

$19.99 USD

2
FRONT RIM 2.50-14 375-602

$99.99 USD

3
Spokes set front 14 inches 375-606

$39.99 USD

4
FRONT TIRE 2.50-14 375-604

$44.99 USD

5
COMPLETE FRONT WHEEL 2.50-14 372-608

$149.99 USD

6
FRONT WHEEL SLEEVE 375-619

$9.99 USD

7
BEARING 6202RS 375-633

$9.99 USD

8
FRONT-BRAKE DISC 377-608

$49.99 USD

9
LEFT SPACER 375-610

$6.99 USD

10
FRONT AXEL ASSY 375-618

$39.99 USD

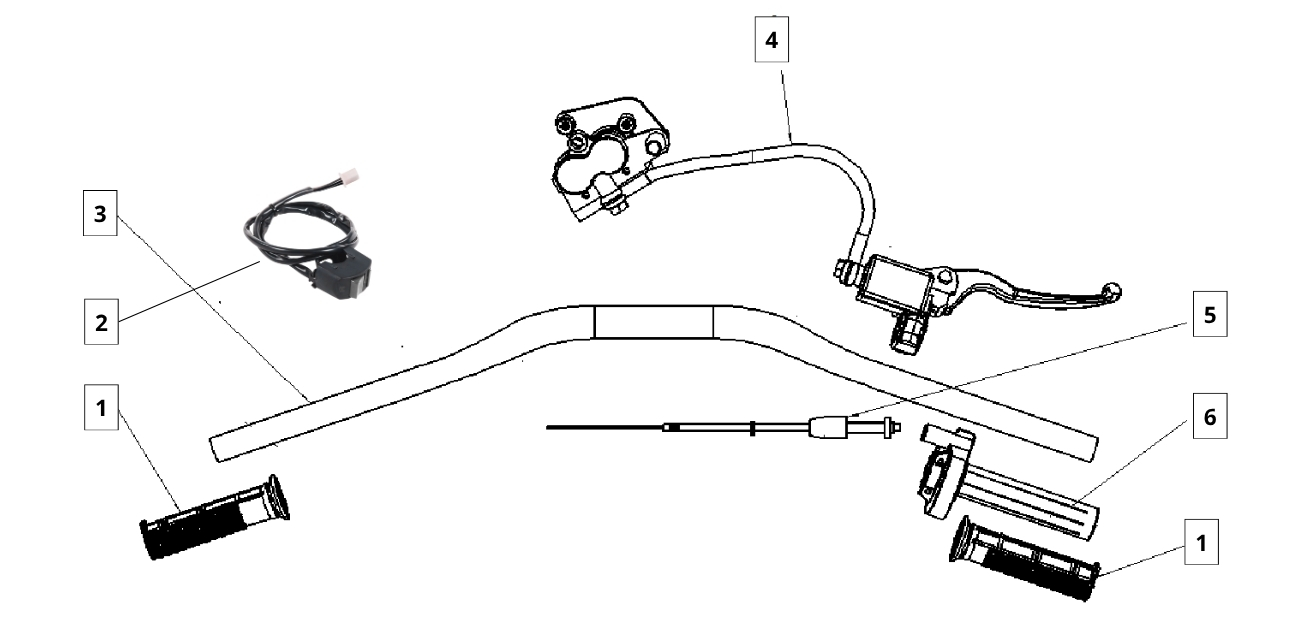

HANDLE + CONTROLLER

HANDLE + CONTROLLER
1A
AM handgrips Black 375-201BK

$19.99 USD

1B
AM handgrips Blue 375-201BU

$19.99 USD

1C
AM handgrips Orange 375-201OR

$19.99 USD

1D
AM handgrips Green 375-201GR

$19.99 USD

1E
AM handgrips Red 375-201RD

$19.99 USD

2
STOP SWITCH 375-018

$29.99 USD

3
HANDLE BAR 23MM 342-213

$39.99 USD

4
FRONT DISK BRAKE 342-613

$99.99 USD

5
THROTTLE CABLE 970MM BLACK 375-207

$25.99 USD

5A
THROTTLE CABLE 970MM AJUSTABLE 375-207-AJ

$29.99 USD

6
HANDLE ASSY WITH HOUSING 375-209

$49.99 USD

HANDLE BAR/STEERING STEM

HANDLE BAR/STEERING STEM
1
Bottom clamp steering column kit 379C-017

$63.99 USD

2
BOLT (2PCS) 375-222

$4.99 USD

Sold out

3
BEARING 32005 342-218

$9.99 USD

4
tapered roller bearing 379C-018

$9.99 USD

5
steering stem nut 379C-019

$4.99 USD

6
Handle bar riser kit (pack as set) 379C-030

$19.99 USD

7
UPPER CLAMP 379C-020

$32.99 USD

8
BOLT M8x25mm (2PCS) 375-223

$4.99 USD

9
WASHER 377-513

$2.99 USD

10
HEX NUT 377-514

$2.99 USD

11
Handlebar foam 379C-021

$3.99 USD

REAR WHEEL/REAR BRAKE ASSY

REAR WHEEL/REAR BRAKE ASSY
1
WHEEL AXLE RFZ OPEN 375-636

$25.99 USD

2
CHAIN TENSIONER 375-415

$39.99 USD

3
BOLT SET FOR REAR SPROCKET (4 pcs) 375-638

$12.99 USD

4
REAR WHEEL SLEEVE 375-637

$9.99 USD

5
REAR RIM 12 INCHES 375-622

$99.99 USD

6
REAR TIRE 12 INCHES 375-624

$59.99 USD

7
COMPLETE REAR WHEEL 3.00-12 375-627

$159.99 USD

8
REAR BRAKE DISC 377-610

$49.99 USD

9
SET OF BOLT FOR BRAKE DISC (4PCS) 375-616

$9.99 USD

Sold out

10
SPACER 375-632

$6.99 USD

11
REAR BRAKE JUNIOR 379-641

$99.99 USD

12
CHAIN 428-120L 375-421

$29.99 USD

Sold out

13
REAR LOCK RIM 375-626

$19.99 USD

14
Cyclinder hardware 379C-016

$3.99 USD

Sold out

15
REAR SPROCKET 428-43T 375-635-43

$34.99 USD

15A
REAR SPROCKET 428-37T 375-635-37

$34.99 USD

15B
REAR SPROCKET 428-39T 375-635-39

$34.99 USD

15C
REAR SPROCKET 428-41T 375-635-41

$34.99 USD

Sold out

15D
REAR SPROCKET 428-45T 375-635-45

$34.99 USD

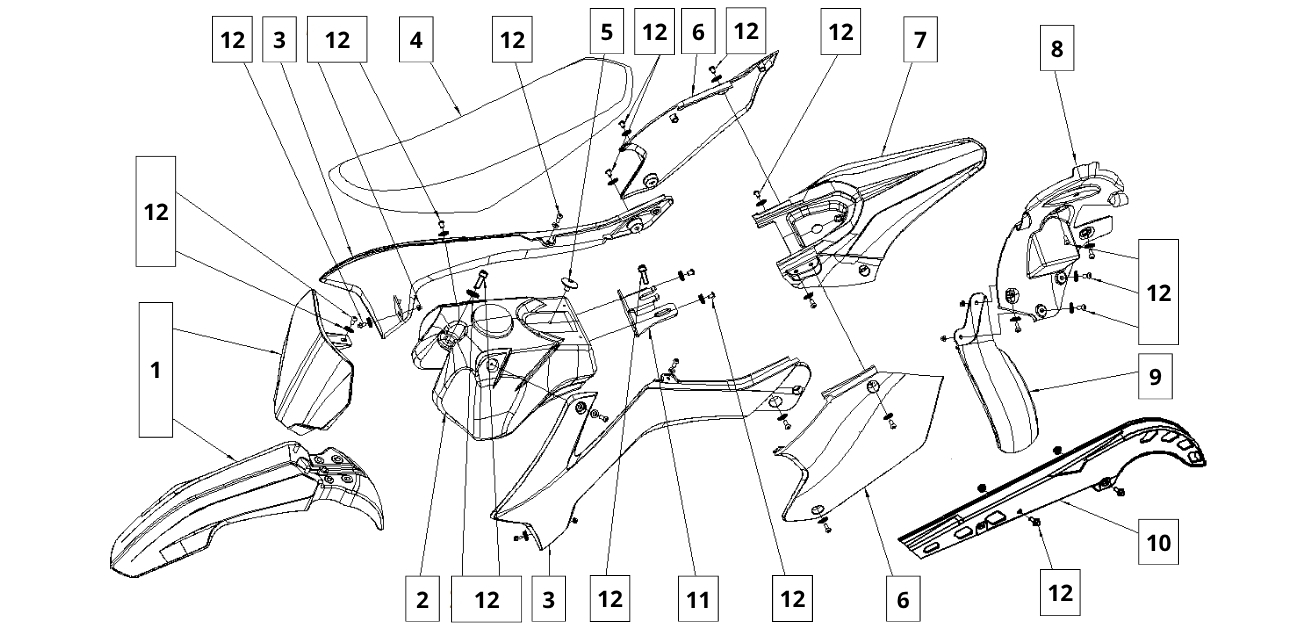

SEAT / PLASTICS

SEAT / PLASTICS
1
FRONT FENDER NAMEPLATE BK 379C-005

$22.99 USD

2
FUEL TANK RXF JUNIOR 379-300

$99.99 USD

3
Front side covers Left + Right BK 379C-006

$21.99 USD

4
SEAT BLACK 379C-007

$71.99 USD

5
BOLT FOR SEAT 375-318

$4.99 USD

6
Rear side covers Left Right BK 379C-008

$18.99 USD

7
rear fender 379C-009

$7.99 USD

8
REAR MUD COVER 379-508

$49.99 USD

9
REAR MUD FENDER 379C-010

$12.99 USD

10
chain cover 379C-011

$96.99 USD

11
FUEL TANK REAR BRAKET 379-408

$19.99 USD

12
Complete plastic kit hardware 379C-029

$6.99 USD

SWING ARM

SWING ARM
1
CHAIN TENSIONER 375-415

$39.99 USD

2
CHAIN GUIDE 377-812

$29.99 USD

3
CHAIN GUIDE FOR SWING ARM 377-817

$25.99 USD

4
REAR SHOCK 280MM 379-418

$149.99 USD

Sold out

5
BOLT FOR REAR SHOCK 375-422

$9.99 USD

6
REAR SWING ARM 375-412

$199.99 USD

7
REAR ENGINE MOUNT BRACKET 375-401

$19.99 USD

8
Middle axe bearing assy (pack as set) 379C-022

$59.99 USD

9
REAR BRAKE HOSE CLIP 379C-023

$3.99 USD
