RFN RALLY

Home - Plans - RFN RALLY

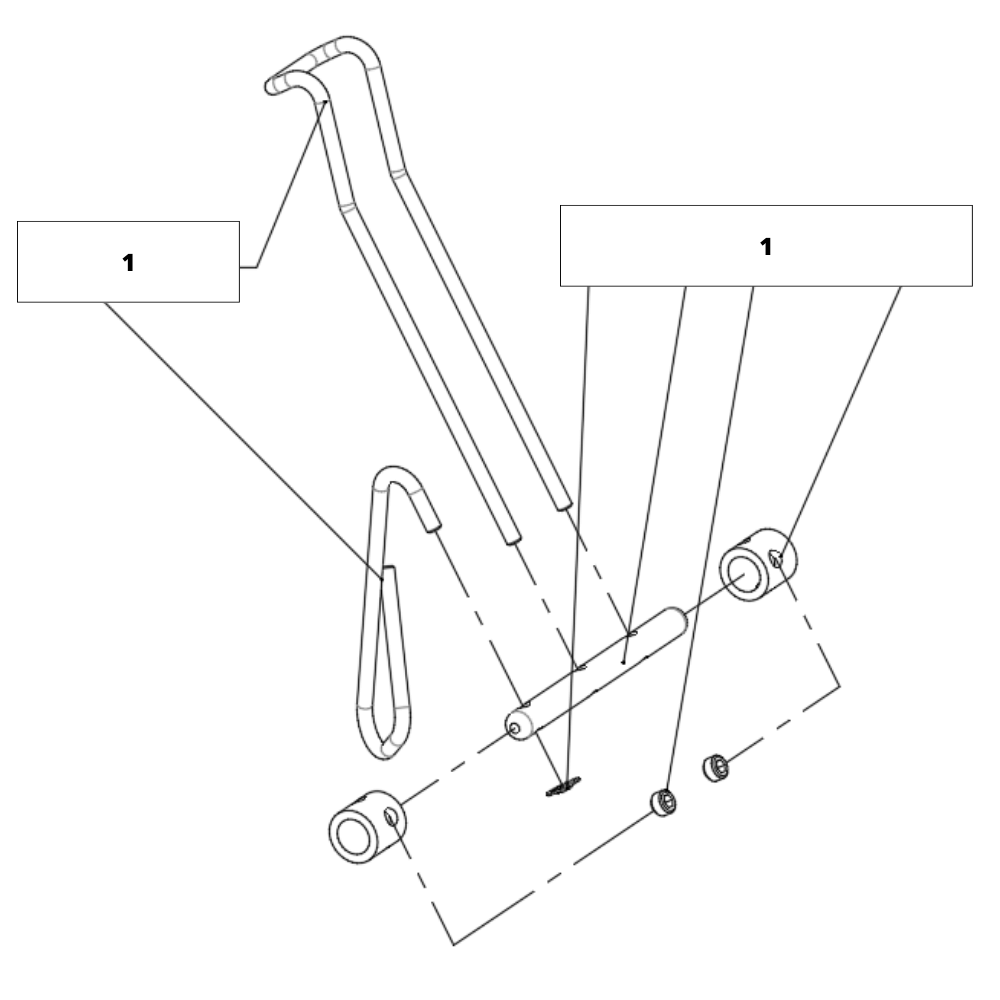

BATTERY PRESSING MECHANISM

BATTERY PRESSING MECHANISM
1
Battery pressing mechanism BE11-028

$49.99 USD

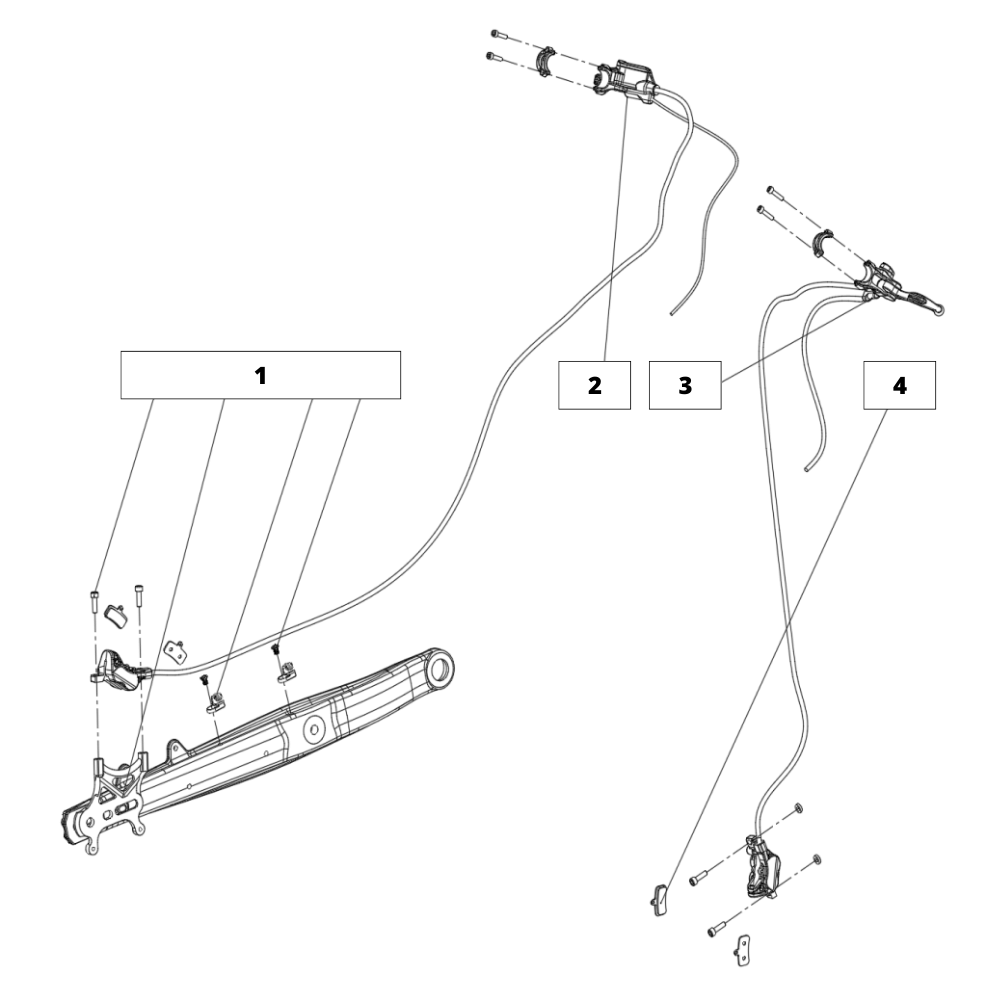

BRAKE ASSY

BRAKE ASSY
1
Rear brake bracket BE11-075

$39.99 USD

2
Rear brake Assy RFN BE11-015

$199.99 USD

3
Front brake Assy RFN BE11-016

$199.99 USD

Sold out

4
PERFO - EBC PREMIUM BRAKE PADS 840655034612

$49.99 USD

4
Brake pad BE11-017

$39.99 USD

ELECTRICAL SYSTEM

ELECTRICAL SYSTEM
1
Switch Button BE11-058

$49.99 USD

2
Bolt (10x) BE11-059

$19.99 USD

3
Harness + Clip BE11-060

$199.99 USD

4
Side stand switch + Nut BE11-061

$49.99 USD

Sold out

5
Chain BE11-062

$99.99 USD

6
MOTOR 12.5KW BE11-063

$999.99 USD

7
DC output line and spacers BE11-064

$149.99 USD

8
Controller BE11-065

$999.99 USD

9
BATTERY 74V 35AH BE11-066

$2 499.99 USD

Sold out

9
Battery 74V 43AH 315006028001

$2 699.99 USD

10
Display BE11-068

$149.99 USD

11
CHARGER ULC RFN BE11-074

$599.99 USD

12
MOTOR SPROCKET 420-11T 311024005001

$24.99 USD

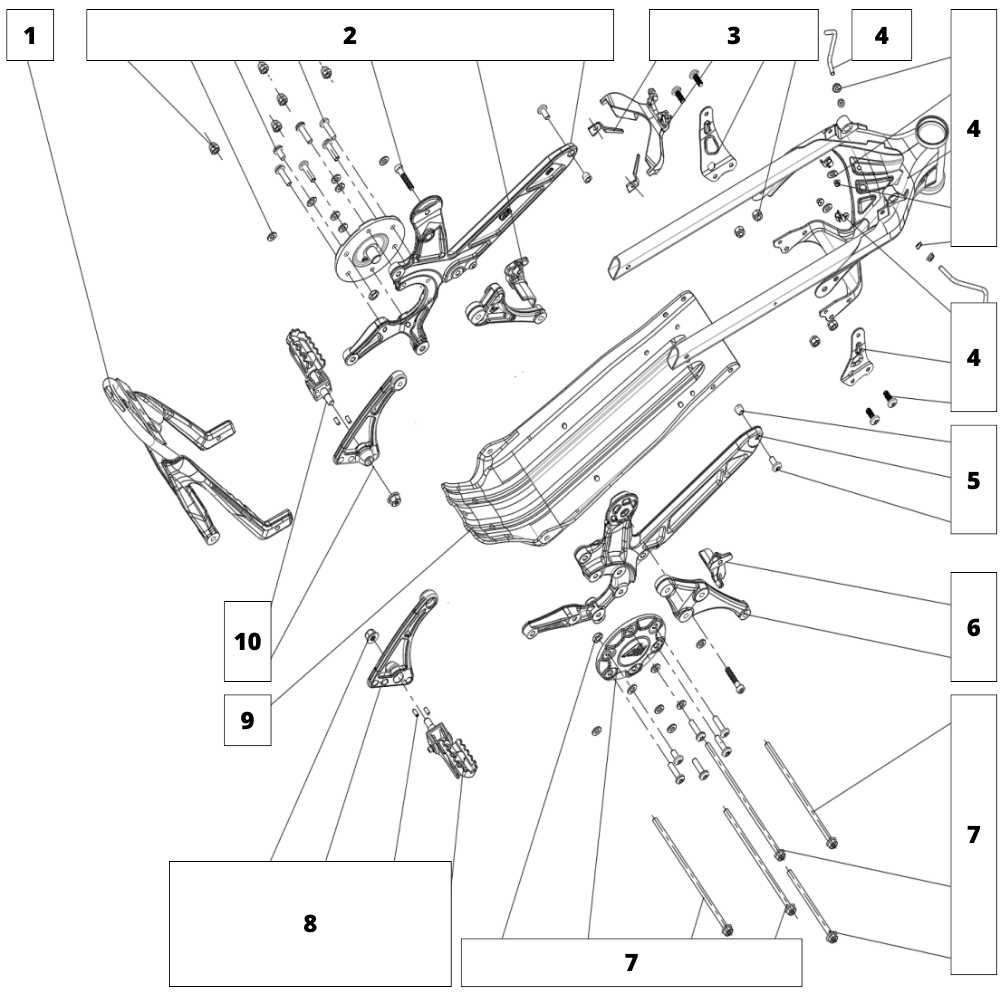

FRAME

FRAME
1
Sub-frame BE11-038

$199.99 USD

Sold out

2
Left frame part +Left battery holder BE11-039

$199.99 USD

3
Frame reinforcement-left BE11-040

$49.99 USD

4
Frame reinforcement-right BE11-041

$199.99 USD

5
Right frame part BE11-042

$199.99 USD

6
Shock absorber fix holder + Right battery holder BE11-043

$149.99 USD

7
Rear swing arm fix holder kit BE11-044

$169.99 USD

8
Foot rest Right + Bracket BE11-045

$149.99 USD

9
SKID PLATE RFN BE11-046

$149.99 USD

10
Foot rest left + Bracket BE11-047

$149.99 USD

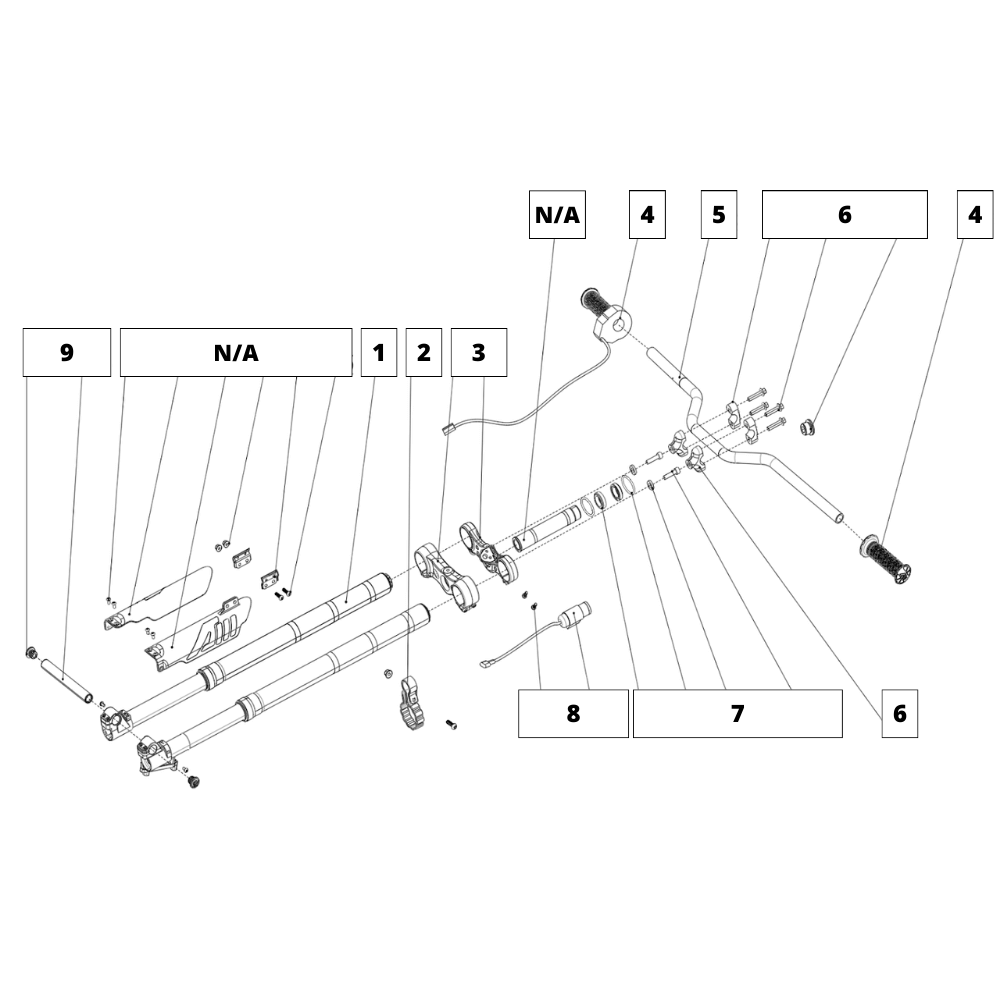

FRONT FORK

FRONT FORK
1
Front fork RFN BE11-019

$499.99 USD

Sold out

2
Fork support BE11-020

$14.99 USD

3
Bottom triple clamp +Top triple clamp + STEM BE11-021

$199.99 USD

4
Electronic throttle BE11-022

$69.99 USD

5
Handle bar BE11-023

$49.99 USD

Sold out

6
Handlbe bar holder upper BE11-024

$49.99 USD

7
Handle bearing assy BE11-025

$49.99 USD

8
KEY SWITCH BE11-026

$69.99 USD

9
Front axle + scew plug BE11-027

$49.99 USD

9
FRONT AXEL NUT ASSY BE11 319079002001

$19.99 USD

10
Fork Seal ARES (2 PCS) 319018031001

$34.99 USD

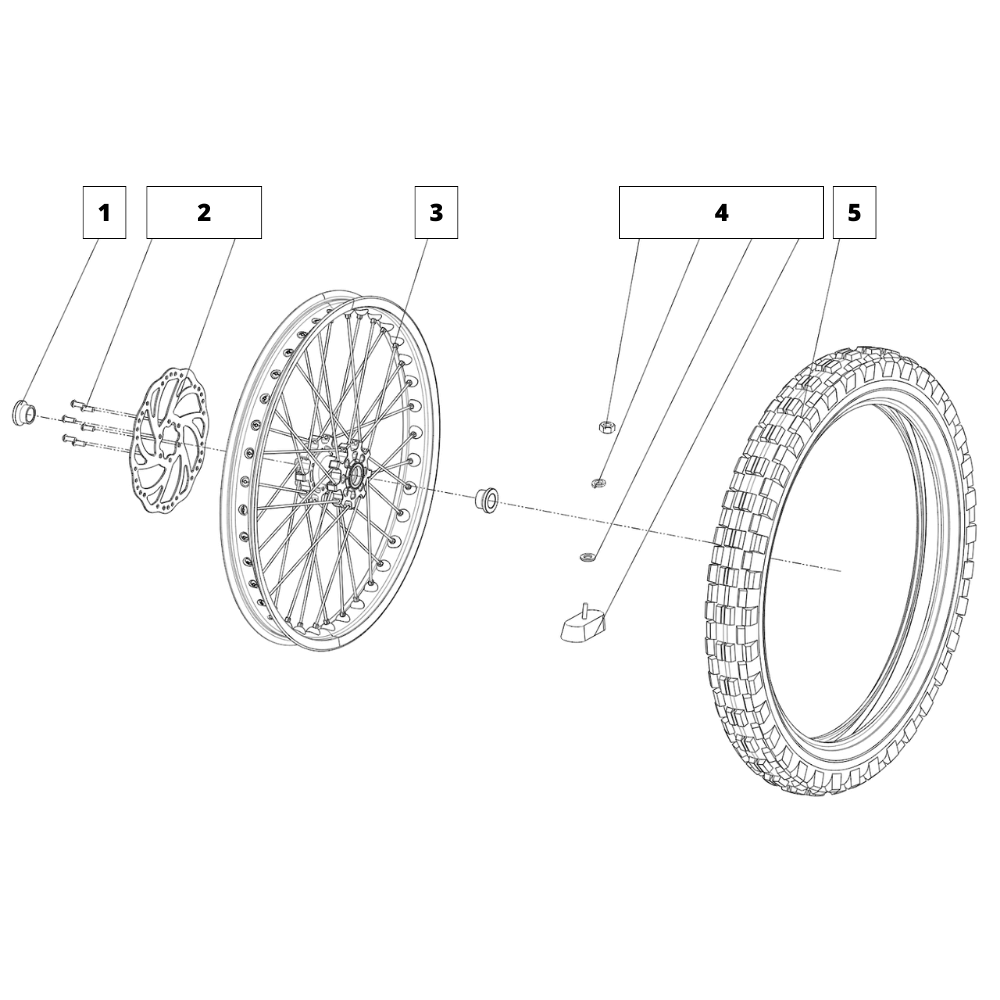

FRONT WHEEL

FRONT WHEEL
1
Front wheel spacer +Rear wheel spacer BE11-007

$24.99 USD

2
Brake Disc + Bolt BE11-002

$49.99 USD

3
Front Rim BE11-008

$499.99 USD

4
Rim Stopper BE11-004

$14.99 USD

5
Front Tire & Inner Tube (Include Tape) BE11-009

$149.99 USD

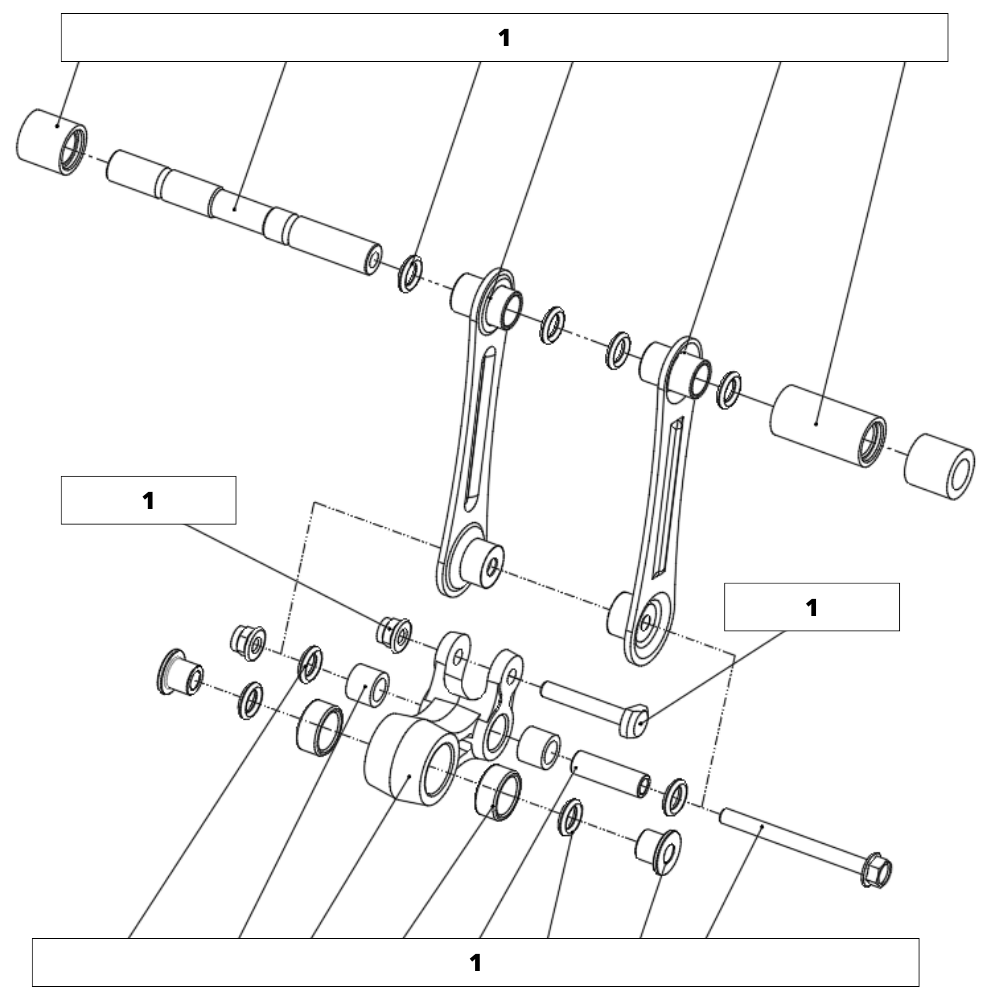

LINKAGE

LINKAGE
1
Linkage assy BE11-010

$149.99 USD

PLASTIC BODY

PLASTIC BODY
1
Left trim panel of the controller kit BE11-049

$19.99 USD

2
Right trim panel of the controller BE11-054

$19.99 USD

3
Top cover part A BE11-055

$49.99 USD

4
Storage box BE11-056

$49.99 USD

Sold out

5
Rear mudflap + Cover nut BE11-057

$49.99 USD

6
Rear fender BE11-048

$49.99 USD

Sold out

7
Left plastic cover BE11-050

$49.99 USD

8
Cover of Switch button fix bracket BE11-051

$49.99 USD

9
Front fender BE11-052

$49.99 USD

Sold out

10
Right plastic cover BE11-053

$49.99 USD

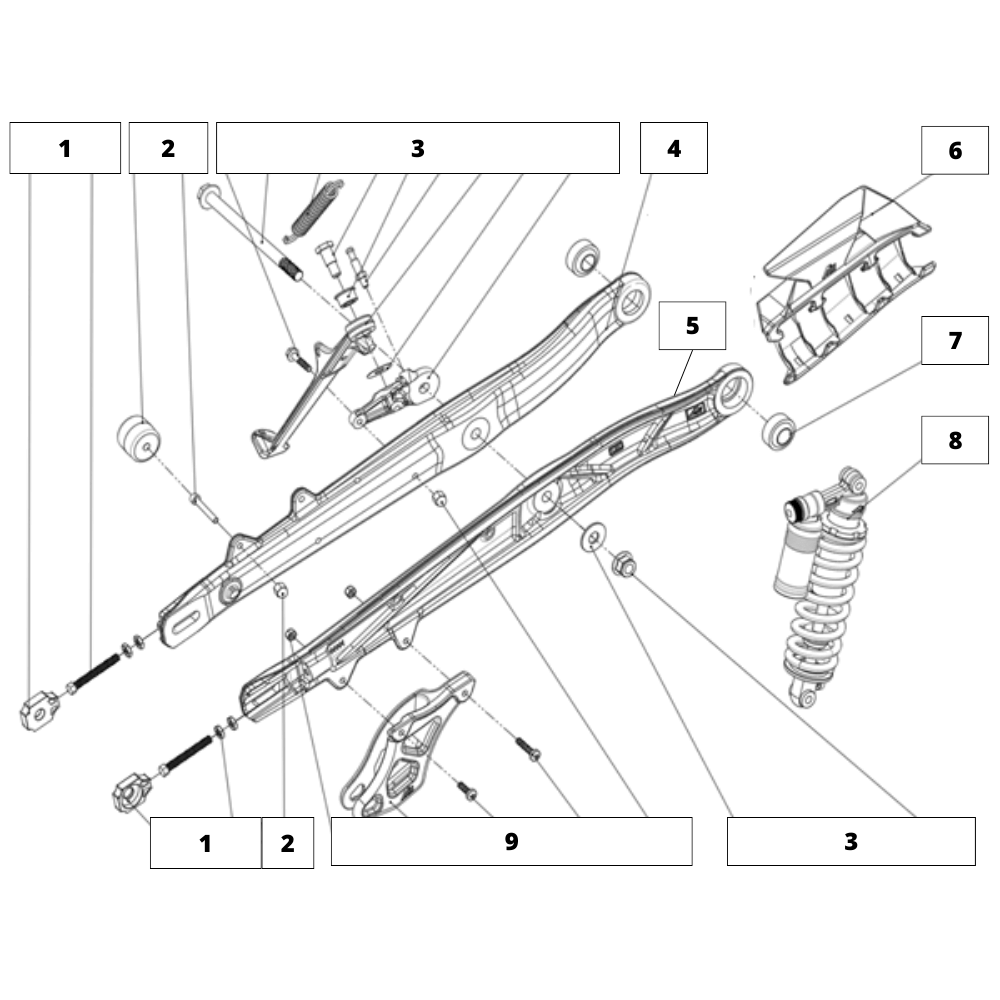

REAR SWING ARM ASSY

REAR SWING ARM ASSY
1
Chain tensioner assy BE11-029

$49.99 USD

2
Side stand limit seat + bolts BE11-030

$39.99 USD

3
Double tension spring kit BE11-031

$149.99 USD

4
Swing arm Right BE11-032

$199.99 USD

5
Swing arm Left BE11-033

$199.99 USD

6
Rear fork cover BE11-034

$49.99 USD

7
Bearing BE11-035

$19.99 USD

8
Rear shock BE11-036

$299.99 USD

9
Chain guide kit BE11-037

$49.99 USD

10
KICK STAND SPRING BE11-077

$19.99 USD

REAR WHEEL ASSY

REAR WHEEL ASSY
1
Rear Axle +nut BE11-001

$49.99 USD

2
Brake Disc + Bolt BE11-002

$49.99 USD

3
Rear Wheel BE11-003

$499.99 USD

Sold out

4
Rim Stopper BE11-004

$14.99 USD

5
Rear Tire & Inner Tube (Include Tape) BE11-005

$149.99 USD

6
Driven Sprocket 420-58T BE11-006

$24.99 USD

Sold out

7
Front wheel spacer +Rear wheel spacer BE11-007

$24.99 USD

SEAT

SEAT
1
Seat BE11-011

$149.99 USD

2
Seat fix pin assy BE11-014

$49.99 USD
