SANO COBRA 800W

Home - Plans - SANO COBRA 800W

BATTERIES

BATTERIES
1
BATTERY COVER HANDLE 10685

$7.99

2
AXIS - Φ5X30 10693

$2.99

3
CLIP - 1.5X10 10694

$2.99

Sold out

4
BOLT - M4X16 10695

$2.99

5
BOLT - M4X12 10696

$2.99

6
UPPER BATTERY COVER 10686

$24.99

7
BATTERY SET 3X12V12AH 10366

$269.99

8
LOWER BATTERY COVER 10688

$24.99

9
BOLT - M4X6 29864

$2.99

10
METAL BRACKET 10689

$2.99

11
COMPLETE BATTERY + COVER + WIRING - 36V12AH 35838

$405.99

Sold out

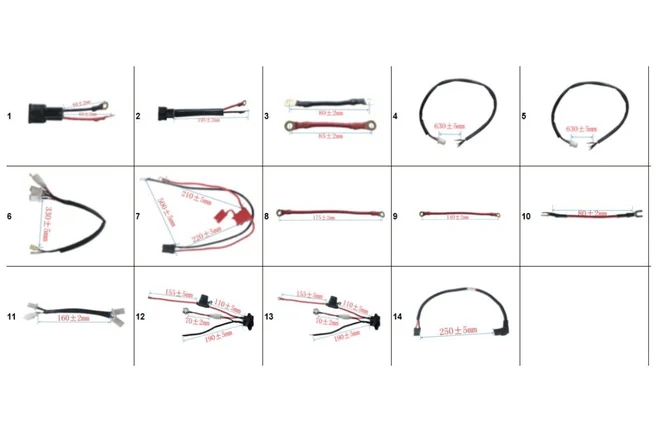

ELECTRIC HARNESSES

ELECTRIC HARNESSES
1
CABLE - REVERSE WITH BUTTON CONNECTOR L=60MM 10434

$8.99

2
ELECTRICAL CABLE - MOTOR CONNECTION 10435

$5.99

3
REVERSE CABLE - 1 BLACK: L=85MM 10433

$2.99

3
BATTERY WIRE EA10X 85MM 10690

$2.99

Sold out

3
REVERSE HARNESS (PAIR) 10727

$2.99

4
CABLE - 3 SPEED LIMITER 10431

$12.99

6
WIRING HARNESS - HORN / LIGHT 330MM 10726

$5.99

7
FUSE BOX 10437

$19.99

Sold out

8
BATTERY CABLE 175MM EQ8X 10430

$4.99

8
BATTERY CABLE 185MM EQ8X 10691

$4.99

Sold out

9
BATTERY CABLE 140MM EQ9X 29937

$4.99

10
CABLE - EQ10X 3-SPEED LIMITER 29941

$2.99

11
LIGHT CABLE 10436

$3.99

Sold out

12
FUSE BOX / CHARGE PORT / HARNESS 10692

$14.99

Sold out

13
LITHIUM BATTERY FUSE BOX 29939

$13.99

Sold out

14
250MM BATTERY POWER CABLES 29940

$19.99

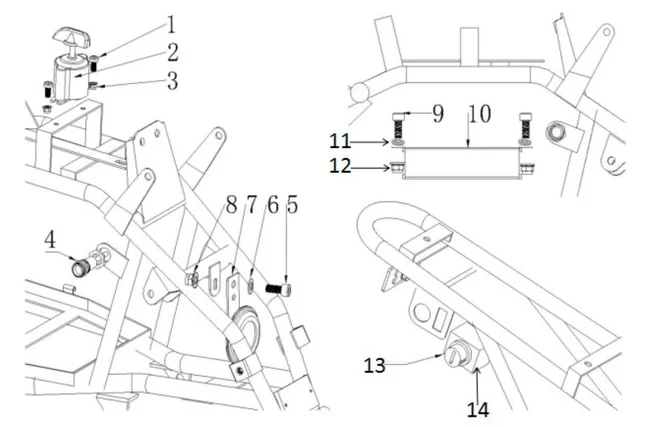

ELECTRONICS

ELECTRONICS
1
BOLT - M5*16 10120

$2.99

2
FORWARD/REVERSE SWITCH 10710

$12.99

3
LOCK NUT - M5 10283

$2.99

4
CHARGING PORT 10712

$9.99

5
BOLT - M6*16 10016

$2.99

6
WASHER - Φ6*16*1.5 10049

$2.99

6
WASHER - Φ16*Φ6.5*1.5 10122

$2.99

Sold out

7
HORN - 36V 10421

$12.99

8
LOCK NUT M6 10097

$2.99

9
BOLT - M5*16 10120

$2.99

10
CONTROLLER BOX - 800W36V 10427

$79.99

Sold out

11
WASHER - Φ6*16*1.5 10049

$2.99

11
WASHER - Φ16*Φ6.5*1.5 10122

$2.99

Sold out

12
LOCK NUT - M5 10283

$2.99

13
KEY - 3 POSITIONS 10424

$39.99

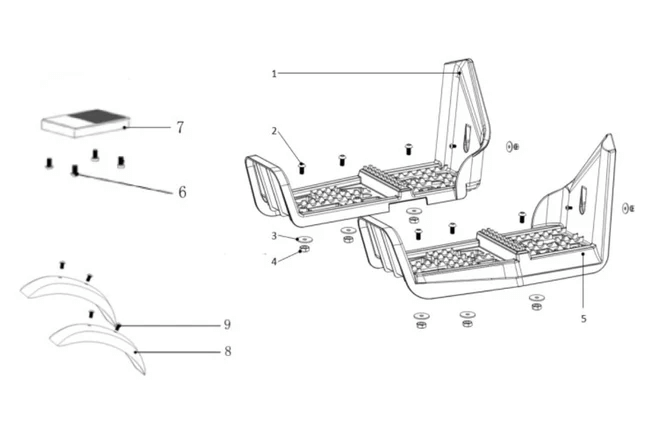

FOOTREST

FOOTREST
1
RIGHT FOOT REST 10303

$39.99

2
BOLT - M6*16 10016

$2.99

3
WASHER - Φ16*Φ6.5*1.5 10362

$2.99

Sold out

4
NUT - M6 10416

$2.99

5
LEFT FOOT REST 10305

$39.99

6
CROSS HEAD BOLT - M4*12 10387

$2.99

9
CROSS HEAD BOLT - M5*8 29931

$2.99

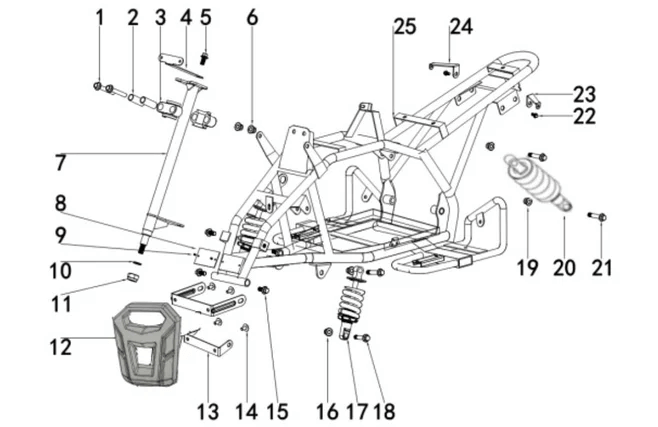

FRAME

FRAME
1
BOLT - M8*50 10203

$2.99

2
SPACER - Φ12*Φ1*34 10204

$5.99

3
UPPER/LOWER BRIDGE STEERING COLUMN 10205

$7.99

4
NUMBER PLATE HOLDER 10208

$5.99

5
BOLT - M8*16 10209

$2.99

6
LOCK NUT - M8 10024

$2.99

7
STEERING COLUMN - L=380MM 29878

$17.99

9
RIVET-Φ3.2*9 10230

$2.99

10
WASHER - Φ10*20*1.5 10469

$2.99

Sold out

11
NUT - M10×1.5 10908

$2.99

12
BUMPER 32846

$12.99

13
UPPER BULL BAR BRACKET 32847

$2.99

13
LOWER BULL BAR BRACKET 32848

$2.99

14
BOLT M6X10MM 27408

$2.99

Sold out

15
BOLT - M8*14 10556

$2.99

Sold out

16
LOCK NUT - M8 10024

$2.99

17
FRONT SHOCK ABSORBER - Φ8*150-Φ4.5 10215

$49.99

18
BOLT - M8*40 10213

$2.99

19
LOCK NUT - M8 10024

$2.99

20
REAR SHOCK ABSORBER - Φ7*125 32864

$49.99

21
BOLT - M8*40 10213

$2.99

22
BOLT - M8*16 10209

$2.99

23
LEFT FAIRING BRACKET 32850

$2.99

24
COBRA RIGHT REAR FAIRING SUPPORT 32851

$2.99

25
800W COBRA FRAME 32865

$152.99

Sold out

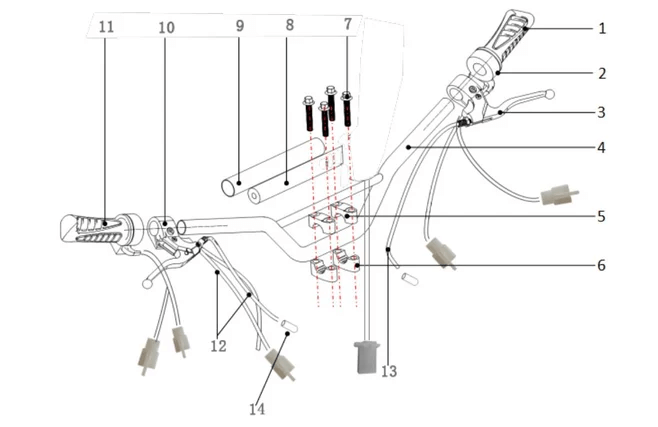

HANDLEBAR

HANDLEBAR
1
LEFT GRIP HANDLE 10345

$9.99

2
HORN BUTTON 10346

$10.99

3
REAR BRAKE LEVER (ELECTRIC STARTER) 10347

$19.99

4
HANDLEBAR L=545±5MM 10167

$24.99

5
Handlebar Upper Clamps 10171

$9.99

6
Handlebar lower Clamp 10177

$9.99

7
BOLT - M8*50 10203

$2.99

8
HANDLEBAR FOAM 10169

$4.99

9
FOAM PROTECTOR - Φ14XΦ35X170 10168

$4.99

10
FRONT BRAKE LEVER 10348

$19.99

11
ELECTRIC QUAD THROTTLE HANDLE 10349

$39.99

11
THROTTLE GRIP - COMPLETE WITH 36V AND LIGHTING SWITCH BUTTON 10633

$28.99

Sold out

12
LEFT AND RIGHT FRONT BRAKE CABLE - 800×950MM (PAIR) 10179

$16.99

13
REAR BRAKE CABLE - 1200*1050MM 29928

$9.99

14
BRAKE CABLE CAP 10041

$2.99

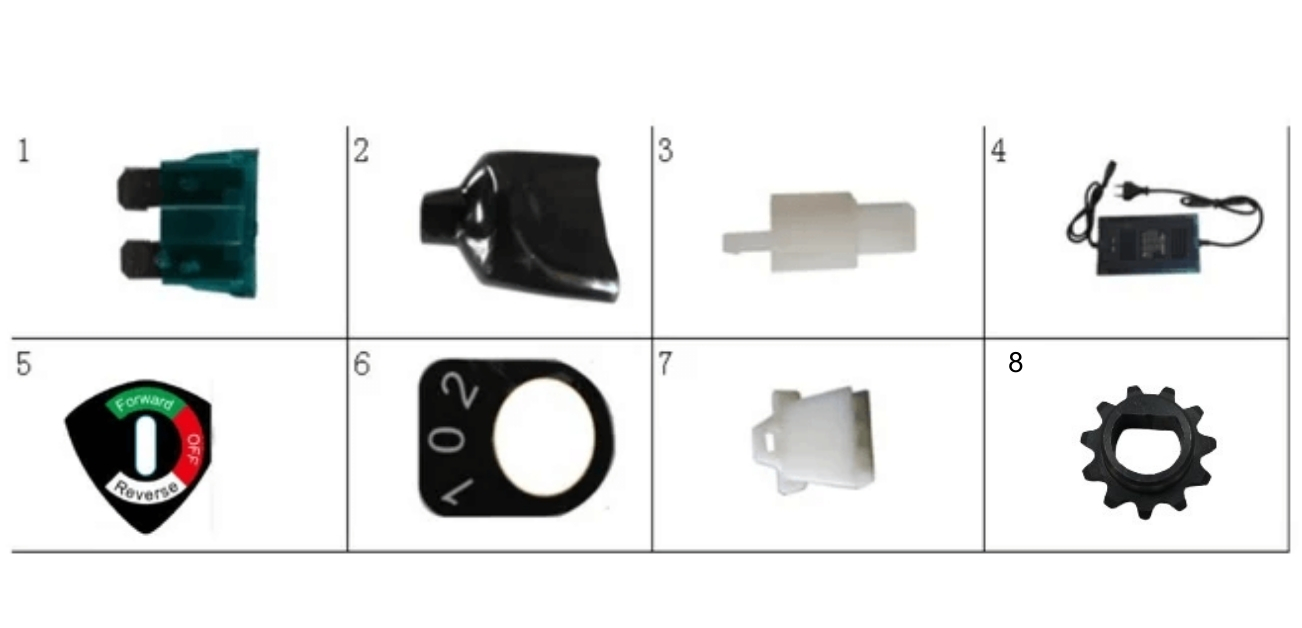

OTHERS

OTHERS
1
FUSE - 35A 10438

$2.99

2
HARNESS COVER 10733

$2.99

3
FEMALE CONNECTOR 10440

$2.99

4
36V ACID BATTERY CHARGER 10441

$89.99

5
SPEED SWITCH STICKERS 10442

$2.99

6
STICKERS - 3 SPEEDS 10443

$2.99

7
MALE CONNECTOR 10444

$2.99

8
SPROCKET 25H - COBRA 800W 31230

$14.99

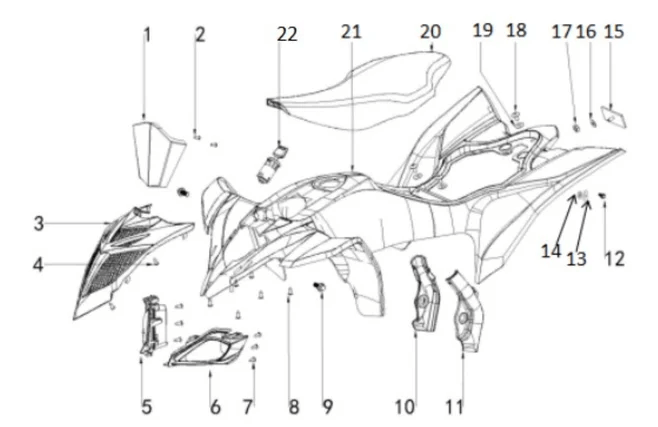

PLASTIC

PLASTIC
1
NUMBER PLATE 10310

$7.99

2
CROSS HEAD BOLT - M4*8 10392

$2.99

3
NOSE VIPER BLACK 10311

$7.99

4
LOCK NUT - M5 10396

$2.99

5
CROSS HEAD BOLT M5*12 10322

$2.99

6
VIPER SADDLE 10317

$32.99

7
BOLT - M6*16 10016

$2.99

8
VIPER BLACK REAR FAIRING 10313

$33.99

9
LOCK NUT - M5 10396

$2.99

10
RUBBER WASHER - Φ16*Φ6*2 10325

$2.99

11
REFLECTIVE 10318

$9.99

12
LOCK NUT M6 10097

$2.99

13
RUBBER WASHER - Φ16*Φ6*2 10325

$2.99

14
BOLT - M6*12 10031

$2.99

15
LOCK NUT M6 10097

$2.99

16
WASHER - Φ16*Φ6.5*1.5 10122

$2.99

Sold out

17
RUBBER WASHER - Φ16*Φ6*2 10325

$2.99

18
BOLT - M6*16 10016

$2.99

19
VIPER BLACK FRONT FAIRING 10312

$59.99

20
BOLT - M6*16 10016

$2.99

21
WASHER - Φ16*Φ6.5*1.5 10122

$2.99

Sold out

22
LOCK NUT M6 10097

$2.99

23
BOLT - M6*16 10016

$2.99

24
RUBBER WASHER - Φ16*Φ6*2 10325

$2.99

25
LOCK NUT M6 10097

$2.99

26
BOLT - M3*10 10339

$2.99

27
LEFT OPTICAL 36V 29930

$24.99

28
CROSS HEAD BOLT M5*12 10322

$2.99

29
OPTICAL SUPPORT 10316

$7.99

30
STRAIGHT OPTIC 36V 29929

$24.99

31
KEY SWITCH 10065

$29.99

32
LEFT FRAME PLASTIC PROTECTION 29918

$9.99

33
RIGHT FRAME PLASTIC PROTECTION 29919

$9.99

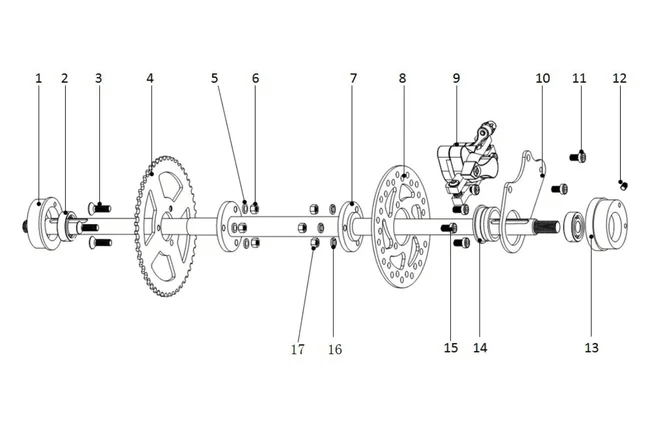

REAR AXEL

REAR AXEL
1
LEFT ECCENTRIC Φ49*Φ35*16 10276

$9.99

2
BEARING - 6003RS 10277

$14.99

3
BOLT - M6*16 10016

$2.99

4
CROWN - 25H-72 TEETH 10377

$29.99

5
WASHER - Φ6 10110

$2.99

6
LOCK NUT M6 10097

$2.99

7
REAR WHEEL SHAFT 575MM 29927

$49.99

8
REAR BRAKE DISC - Φ140X2XΦ29 10282

$29.99

9
REAR BRAKE CALIPER BLACK 29902

$25.99

10
BRAKE CALIPER BRACKET 29903

$2.99

11
BOLT - M6*12 10031

$2.99

12
BOLT - M5*10 10287

$2.99

13
RIGHT ECCENTRIC Φ49*Φ35*22 10288

$9.99

14
SPACER Φ28×Φ35×16MM 29904

$2.99

15
BOLT - M6*16 10016

$2.99

16
GROWER WASHER Φ6 10242

$2.99

17
LOCK NUT M6 10097

$2.99

REAR DRIVETRAIN

REAR DRIVETRAIN
1
CHAIN ​​GUARD - COMPLETE (2 PCS) 10385

$24.99

2
BOLT M6*8 10159

$2.99

3
CROSS HEAD BOLT - M4*12 10387

$2.99

4
CHAIN ​​- 25H-92 LINKS 10388

$19.99

5
SPACER - Φ20*Φ17*112 10296

$5.99

6
SPACER - Φ8*Φ6*14 10297

$2.99

7
BOLT - M6*25 10256

$2.99

8
WASHER - Φ14 10390

$2.99

9
LOCK NUT M14*1.5 10301

$2.99

10
KEY 40×6 10298

$2.99

11
REAR WHEEL PLASTIC CAP 32854

$2.99

Sold out

12
SPROCKET 25H - COBRA 800W 31230

$14.99

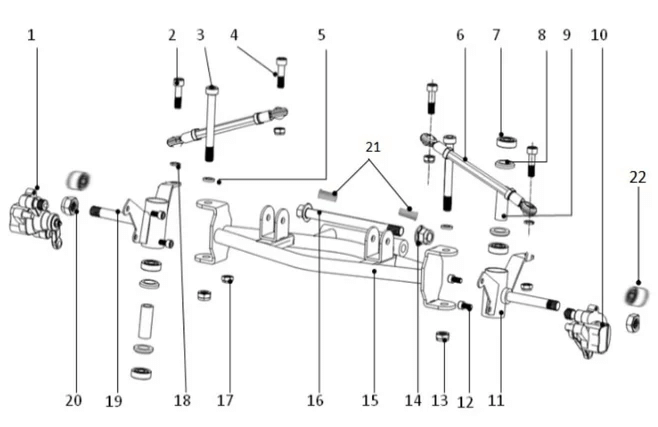

STEERING SYSTEM

STEERING SYSTEM
1
RIGHT BRAKE CALIPER BLACK 29879

$24.99

2
BOLT - M8*30 10183

$2.99

3
SHAFT - M10*85*1.5 10184

$4.99

4
BOLT - M8*25 10185

$2.99

5
WASHER - Φ10×Φ20×1.5 10186

$2.99

6
LINK - L=105MM 10187

$12.99

7
BEARING - 6000 10188

$6.99

8
RUBBER WASHER - 24*14*5 10189

$2.99

9
SPACER - Φ14*11*46.5 10493

$2.99

10
LEFT MECHANICAL BRAKE CALIPER 10047

$24.99

11
LEFT FRONT KNUCKLE (6 WHEEL) 10193

$19.99

12
BOLT - M6*12 10031

$2.99

13
LOCK NUT - M10*1.5 10195

$2.99

14
LOCK NUT - M10*1.25 10196

$2.99

15
FRONT SWINGARM 32837

$38.99

16
FRONT SWINGARM SHAFT M10*150*1.25 10198

$3.99

17
LOCK NUT - M8 10024

$2.99

18
WASHER - Φ8 10200

$2.99

19
RIGHT FRONT KNUCKLE (6 WHEEL) 10201

$19.99

20
LOCK NUT - M12*1.5 10202

$2.99

21
NYLON RING 32852

$2.99

22
FRONT WHEEL PLASTIC CAP 32863

$2.99

Sold out

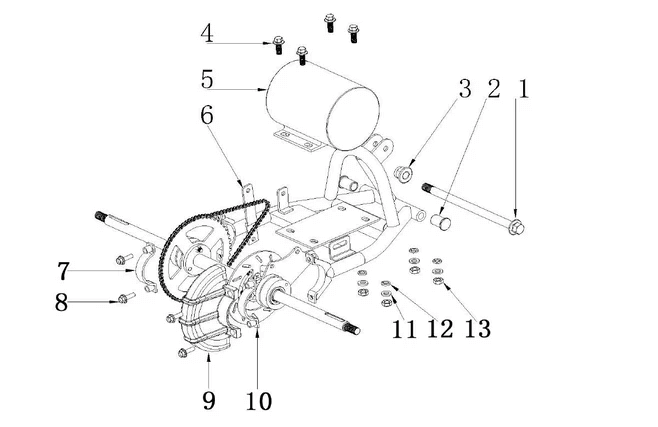

SWINGING ARM

SWINGING ARM
1
SHAFT M10*195*1.25 29897

$4.99

2
NYLON RING 32852

$2.99

3
LOCK NUT - M10*1.25 10196

$2.99

4
BOLT - M6*16 10368

$2.99

5
MOTOR - 800W 36V 32262

$274.99

6
REAR SWINGARM 10371

$42.99

7
DRIVE SHAFT RETAINING RING - LEFT 10274

$4.99

8
BOLT - M6*30 10275

$2.99

9
PLASTIC DISC PROTECTION 29899

$7.99

10
DRIVE SHAFT RETAINING RING - RIGHT 10273

$7.99

11
GROWER WASHER - Φ8 10374

$2.99

12
WASHER - Φ16*Φ8.2*1.5 10375

$2.99

13
LOCK NUT - M8 10024

$2.99

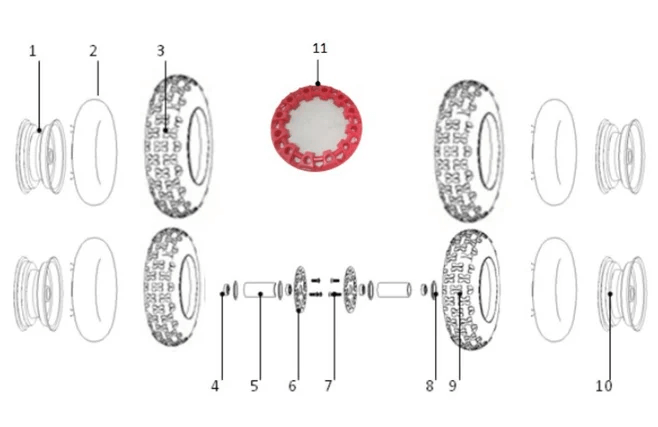

WHEELS

WHEELS
1
REAR RIM - 6 10259

$27.99

2
6INCH TUBE 10260

$16.99

Sold out

3
REAR TIRE 13X5.00-6 10261

$28.99

4
BEARING - 6001 10262

$9.99

5
FRONT WHEEL SPACER - Φ116*14*64.5 10263

$2.99

6
LEFT BRAKE DISC Φ120×2×Φ37 29885

$18.99

6
RIGHT BRAKE DISC Φ120×2×Φ37 29887

$18.99

7
BOLT M6*8 10159

$2.99

8
SPACER - Φ15*Φ25*5 29886

$2.99

9
FRONT TIRE - 4.10-6 10267

$47.99

10
FRONT RIM - 6 10268

$35.99

11
6'' FRONT WHEEL NUT CAP 33498

$0.99

12
WHEEL NUT CAP 6'' M14-22 33499

$9.99
