SANO COBRA 1000W

Home - Plans - SANO COBRA 1000W

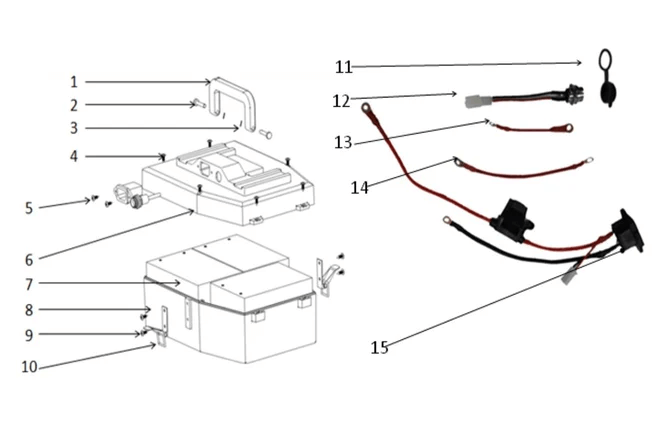

BATTERIES

BATTERIES
1
BATTERY COVER HANDLE 10685

$7.99

2
AXIS - Φ5X30 10693

$2.99

3
CLIP - 1.5X10 10694

$2.99

Sold out

4
BOLT - M4X16 10695

$2.99

5
BOLT - M4X12 10696

$2.99

6
BATTERY PLASTIC CASE 32264

$34.99

7
BATTERY SET 3X12V12AH 10366

$269.99

8
LOWER BATTERY COVER 10688

$24.99

Sold out

9
BOLT - M4X6 29864

$2.99

10
METAL BRACKET 10689

$2.99

12
CHARGING PORT 10429

$2.99

Sold out

13
BATTERY CABLE 185MM EQ8X 10691

$4.99

Sold out

14
BATTERY WIRE EA10X 85MM 10690

$2.99

Sold out

15
FUSE BOX / CHARGE PORT / HARNESS 10692

$14.99

Sold out

16
REVERSE HARNESS (PAIR) 10727

$2.99

Sold out

17
COMPLETE BATTERY + COVER + WIRING - 36V12AH 10684

$352.99

Sold out

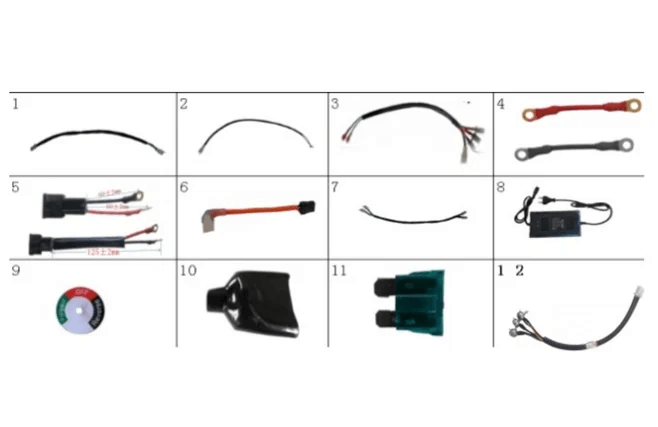

ELECTRIC HARNESSES

ELECTRIC HARNESSES
1
WIRING HARNESS - REAR LIGHT 480MM 10724

$2.99

2
WIRING HARNESS - REAR BRAKE 490MM 10725

$2.99

Sold out

3
WIRING HARNESS - HORN / LIGHT 330MM 10726

$5.99

4
REVERSE HARNESS (PAIR) 10727

$2.99

Sold out

5
REVERSE SWITCH HARNESS L:60MM 10728

$5.99

Sold out

5
REVERSE SWITCH HARNESS L:125MM 35811

$5.99

Sold out

6
POWER SUPPLY CABLE 10729

$19.99

7
REMOTE BOX HARNESS 10730

$4.99

Sold out

8
36V ACID BATTERY CHARGER 10441

$89.99

Sold out

11
FUSE - 35A 10438

$2.99

Sold out

12
SPEED CONTROL BUTTONS (3 POTENTION METER) 10731

$55.99

Sold out

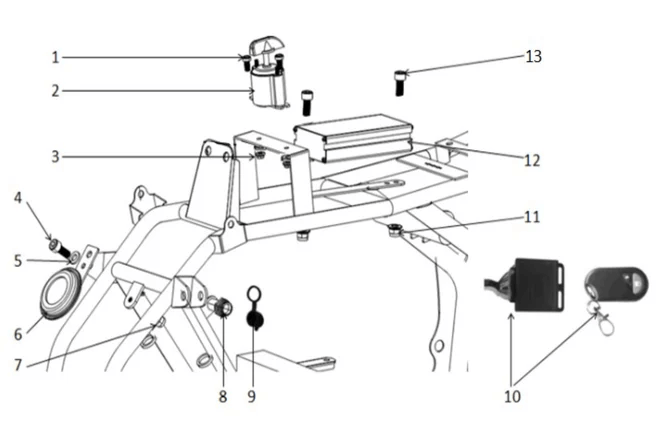

Electronics

Electronics
1
BOLT - M6*16 10016

$2.99

Sold out

1
BOLT - M5*16 10120

$2.99

2
FORWARD/REVERSE SWITCH 10710

$12.99

3
LOCK NUT - M5 10283

$2.99

4
BOLT - M6*16 10016

$2.99

Sold out

5
WASHER - Φ6*16*1.5 10049

$2.99

Sold out

5
WASHER - Φ6*16*1.5 10596

$2.99

Sold out

6
HORN - 36V 10421

$12.99

7
LOCK NUT M6 10097

$2.99

8
CHARGING PORT 10712

$9.99

Sold out

9
CAP BATTERY CHARGER SOCKET 10713

$2.99

Sold out

11
WASHER - Φ6*16*1.5 10049

$2.99

Sold out

11
NUT - M5 10708

$2.99

Sold out

12
CONTROLLER BOX 36V1000W 10715

$112.99

14
BOLT - M5*16 10120

$2.99

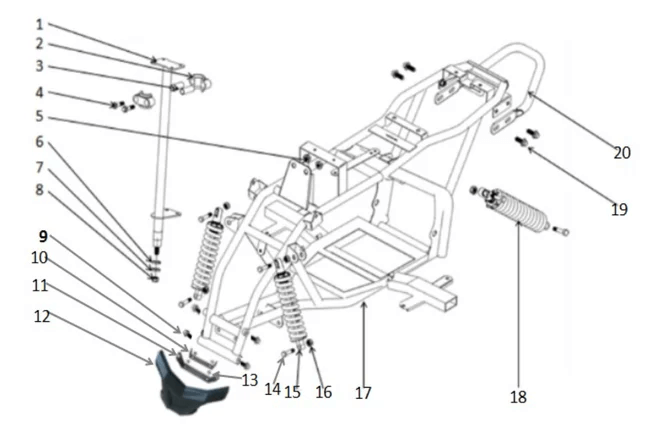

FRAME

FRAME
1
STEERING COLUMN 500MM 10464

$27.99

2
LOWER/UPPER BRIDGE - STEERING COLUMN 10207

$7.99

3
SADDLE SPACER - Φ14*1.5*40 10466

$2.99

Sold out

4
BOLT - M10×55×1.25 10849

$2.99

Sold out

5
LOCK NUT - M10*1.25 10196

$2.99

Sold out

6
WASHER - Φ10*20*1.5 10469

$2.99

Sold out

7
WASHER - Φ10 10470

$2.99

Sold out

9
BOLT - M8*14 10556

$2.99

Sold out

10
LOWER FOX BULL BAR SUPPORT 35810

$4.99

Sold out

11
UPPER FOX BULL BAR SUPPORT 35809

$4.99

Sold out

12
COBRA BULL BAR 10475

$27.99

14
BOLT - M10*40*1.25 10476

$2.99

15
FRONT SHOCK ABSORBER - Φ6X235 10477

$39.99

16
LOCK NUT - M10*1.25 10196

$2.99

Sold out

17
FRAME 10646

$182.99

Sold out

18
REAR SHOCK ABSORBER - Φ8X235 10647

$49.99

20
BACK LOOP A503 10484

$14.99

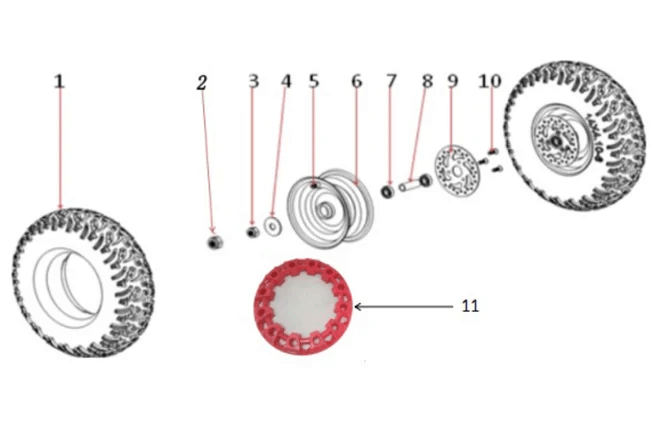

FRONT WHEELS

FRONT WHEELS
1
FRONT TIRE - 14X4.10-6 10506

$47.99

2
LOCK NUT - M14*1.5 10507

$2.99

2
WHEEL NUT CAP 6'' M14-22 33499

$9.99

3
WASHER - Φ14*28*3 10508

$2.99

Sold out

5
FRONT RIM - 6 10268

$35.99

5
VALVE 10509

$2.99

7
BEARING - 6902RS 10511

$9.99

8
FRONT WHEEL SPACER - Φ19*1.5*64.5 10512

$2.99

9
FRONT DISC - Φ120MMX3 10513

$19.99

9
RIGHT FRONT DISC - Φ120×3×Φ37MM 29858

$12.99

9
LEFT FRONT DISC - Φ120×3×Φ37MM 29859

$12.99

10
BOLT - M6*12 10031

$2.99

Sold out

11
6'' RED PLASTIC TRIM 35812

$6.99

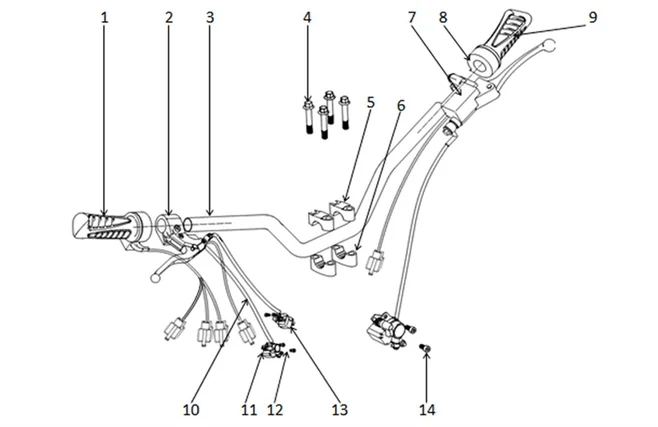

HANDLEBAR

HANDLEBAR
1
THROTTLE GRIP - COMPLETE WITH 36V AND LIGHTING SWITCH BUTTON 10633

$28.99

Sold out

2
FRONT BRAKE LEVER 10447

$19.99

3
HANDLEBAR - Φ22*620MM 10449

$14.99

4
BOLT - M8*50 10203

$2.99

5
Handlebar Upper Clamps 10171

$9.99

6
Handlebar lower Clamp 10177

$9.99

7
REAR BRAKE KIT WITH LEVER (1350MM) 10463

$99.99

8
HORN BUTTON 10346

$10.99

9
LEFT GRIP HANDLE 10345

$9.99

10
BRAKE CABLE - RIGHT & LEFT 950X1100MM 10636

$29.99

11
RIGHT BRAKE CALIPER BLACK 29879

$24.99

12
BOLT - M6*12 10031

$2.99

Sold out

13
LEFT BRAKE CALIPER 10191

$24.99

14
BOLT - M8*16 10209

$2.99

Sold out

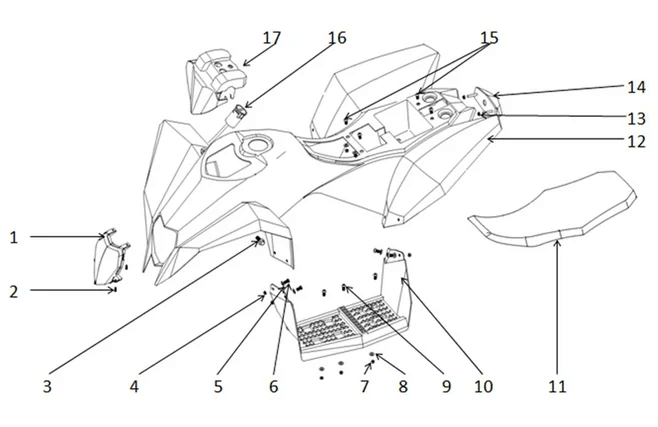

Plastics

Plastics
1
HEADLAMP 36V 10698

$18.99

Sold out

2
BOLT - M4*10 10383

$2.99

Sold out

3
BOLT - M8*16 10209

$2.99

Sold out

4
BOLT - M6 10966

$2.99

Sold out

5
RUBBER WASHER - Φ6×16×2 10988

$2.99

Sold out

6
BOLT - M6*16 10368

$2.99

Sold out

7
LOCK NUT M6 10097

$2.99

8
WASHER - Φ6*16*1.5 10049

$2.99

Sold out

8
WASHER - Φ6*16*1.5 10596

$2.99

Sold out

9
BOLT - M6*16 10016

$2.99

Sold out

10
LEFT FOOTREST 10588

$26.99

10
RIGHT FOOTREST 29860

$26.99

11
SEAT ZR50 BLACK 10594

$49.99

12
FOX BLACK PLASTIC KIT 10589

$99.99

Sold out

13
NUT - M5 10708

$2.99

Sold out

13
BOLT - M5 10960

$2.99

Sold out

14
REAR LAMP 36V 10699

$24.99

15
BOLT - M6 10359

$2.99

Sold out

15
BOLT - M6*16 10368

$2.99

Sold out

16
KEY SWITCH 10065

$29.99

Sold out

17
HANDLEBAR PROTECTION 10593

$4.99

Sold out

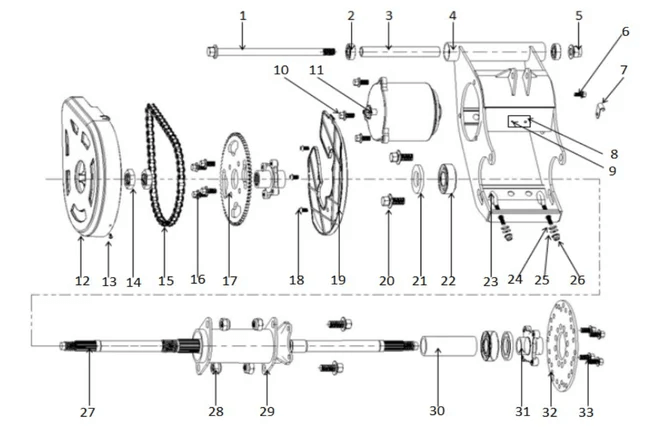

Rear train

Rear train
1
SHAFT - M12*1.25*190 10656

$14.99

2
BEARING - 6001 10262

$9.99

Sold out

3
SPACER - Φ16*1.5*140.5 10657

$9.99

4
SWING ARM ZR50 10658

$116.99

5
LOCK NUT - M12*1.25 10535

$2.99

Sold out

6
BOLT - M6*16 10016

$2.99

Sold out

7
REAR BRAKE HOSE HOLDER 10662

$2.99

Sold out

8
RIVET-Φ3.2*9 10230

$2.99

Sold out

9
BOLT - M8*14 10556

$2.99

Sold out

10
BOLT - M6*20 10112

$2.99

Sold out

11
MOTOR 36V 1000W 50190220108

$299.99

Sold out

12
OUTER CHAIN ​​GUARD 10666

$17.99

13
SECURITY NUT - M4X10 10667

$2.99

Sold out

14
FLAT NUT - M22X1.5 10668

$2.99

Sold out

15
CHAIN ​​- 25H 82T 10669

$19.99

17
REAR SPROCKET 70T 10671

$29.99

18
BOLT - M6*12 10031

$2.99

Sold out

19
BOLT - M8*14 10556

$2.99

Sold out

19
INNER CHAIN ​​GUARD 10673

$17.99

20
BOLT - M12*1.25*25 10534

$2.99

Sold out

21
SPI SEAL - 32*52*8 10538

$2.99

22
BEARING - 6205 10537

$9.99

23
CHAIN ​​TENSIONER - Φ12*Φ8*70 10548

$2.99

24
WASHER - Φ8×Φ16×1.5 10876

$2.99

25
GROWER WASHER - Φ8 10374

$2.99

26
LOCK NUT - M8 10024

$2.99

27
REAR AXLE SHAFT - COBRA 1000W 10679

$32.99

Sold out

28
LOCK NUT - M12*1.25 10535

$2.99

Sold out

29
COBRA 1000W REAR WHEEL AXLE HUB 10681

$29.99

30
HUB SPACER - Φ30X2.0X95.5 10682

$2.99

31
DISC HOLDER 10552

$12.99

32
DISQUE DE FREIN ARRIÈRE 160X3MM 10555

$18.99

33
MOTOR MOUNT 48V13000W 10660

$13.99

Sold out

34
COVER - Φ32 10487

$2.99

Sold out

35
RUBBER SEAL - D=30 10737

$2.99

Sold out

37
Sprocket 25H-10T 10114

$19.99

Rear wheels

Rear wheels
1
REAR TIRE - 14X5.00-6 10515

$47.99

2
BOLT - M8*16 10209

$2.99

Sold out

3
Slotted Nut M16*1.5 10517

$2.99

4
WASHER - Φ16*30*3 10518

$2.99

5
VALVE 10509

$2.99

6
REAR RIM - 6 INCH 10519

$39.99

7
PIN 2.5X25 10520

$2.99

Sold out

7
PIN - 2.5×25 10928

$2.99

Sold out

8
REAR RIM HUB 10521

$13.99

9
WASHER - Φ8 10200

$2.99

9
WASHER - Φ8×Φ16×1.5 10876

$2.99

10
GROWER WASHER - Φ8 10374

$2.99

11
LOCK NUT - M8 10024

$2.99

12
6'' REAR WHEEL NUT CAP 33500

$2.99

13
6'' RED PLASTIC TRIM 35812

$6.99

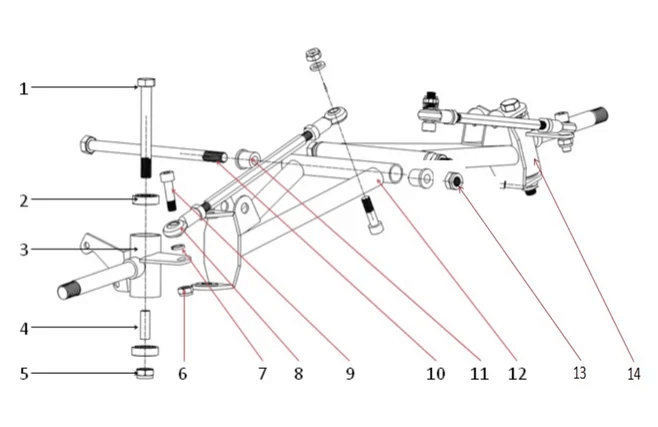

STEERING SYSTEM

STEERING SYSTEM
1
SHAFT - M10*85*1.5 10184

$4.99

2
BEARING - 6000 10188

$6.99

3
LEFT FRONT KNUCKLE 10492

$12.99

3
LEFT FRONT KNUCKLE 29861

$14.99

4
SPACER - Φ14*11*46.5 10493

$2.99

5
LOCK NUT - M10*1.5 10195

$2.99

Sold out

6
LOCK NUT - M8 10024

$2.99

7
WASHER - Φ8 10200

$2.99

7
GROWER WASHER - Φ8 10374

$2.99

9
BOLT - M8*30 10183

$2.99

10
AXIS M8X170 10500

$2.99

Sold out

11
BOLT M8X30 10653

$2.99

Sold out

12
FRONT LEFT & RIGHT BLACK - Swingarm 10502

$28.99

13
LOCK NUT - M10*1.5 10195

$2.99

Sold out

14
LEFT FRONT KNUCKLE 10492

$12.99

14
RIGHT FRONT KNUCKLE 29862

$14.99

17
SPACER - Φ12*1.8*150 10503

$2.99

Sold out

19
NYLON SPACER 10501

$2.99

Sold out
