RFN WARRIOR SX-E5

Home - Plans - RFN WARRIOR SX-E5

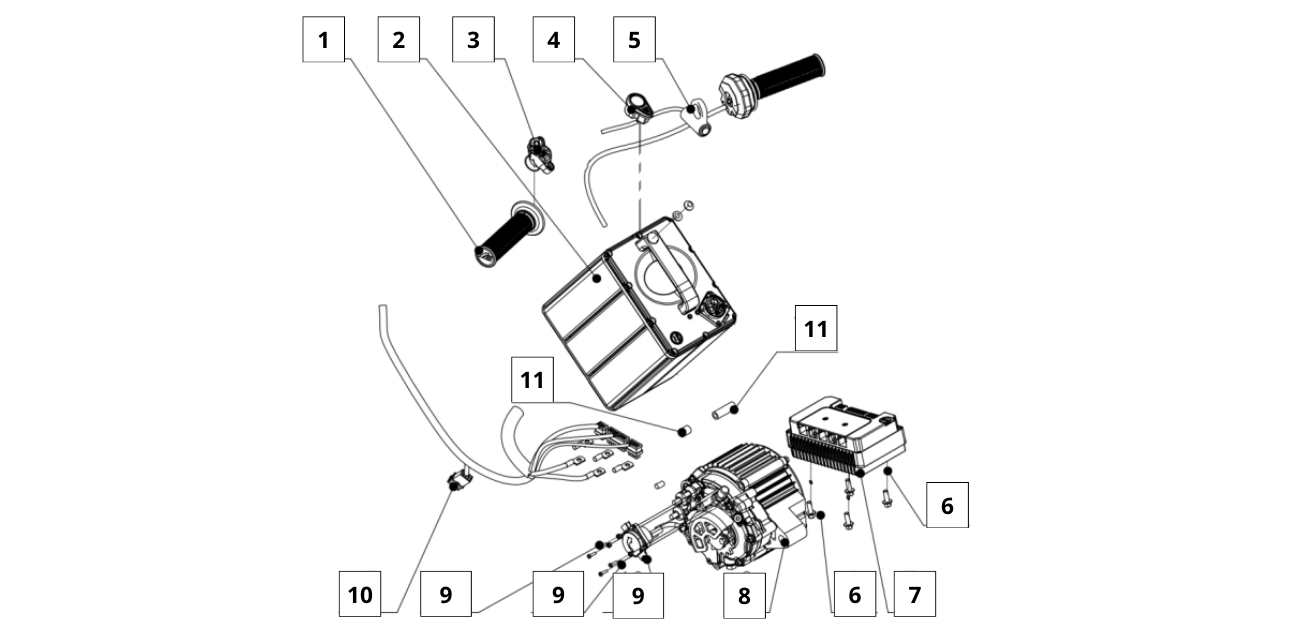

Electric components

Electric components
1
Throttle grip BE15-042

$49.99

Sold out

2
Battery BE15-043

$1199.99

Sold out

2-A
Charger BE15-080

$249.99

Sold out

3
Emergency power-off switch BE15-044

$29.99

Sold out

4
Display BE15-045

$99.99

Sold out

5
Start switch BE15-046

$39.99

Sold out

6
Controller bolts & spacers BE15-047

$19.99

Sold out

7
Controller BE15-048

$399.99

Sold out

8
Motor BE15-049

$699.99

Sold out

9
Charging port + bolts & nuts BE15-050

$89.99

Sold out

10
Wire harness assembly BE15-051

$149.99

Sold out

11
Motor fixing bushing + bolts BE15-052

$19.99

Sold out

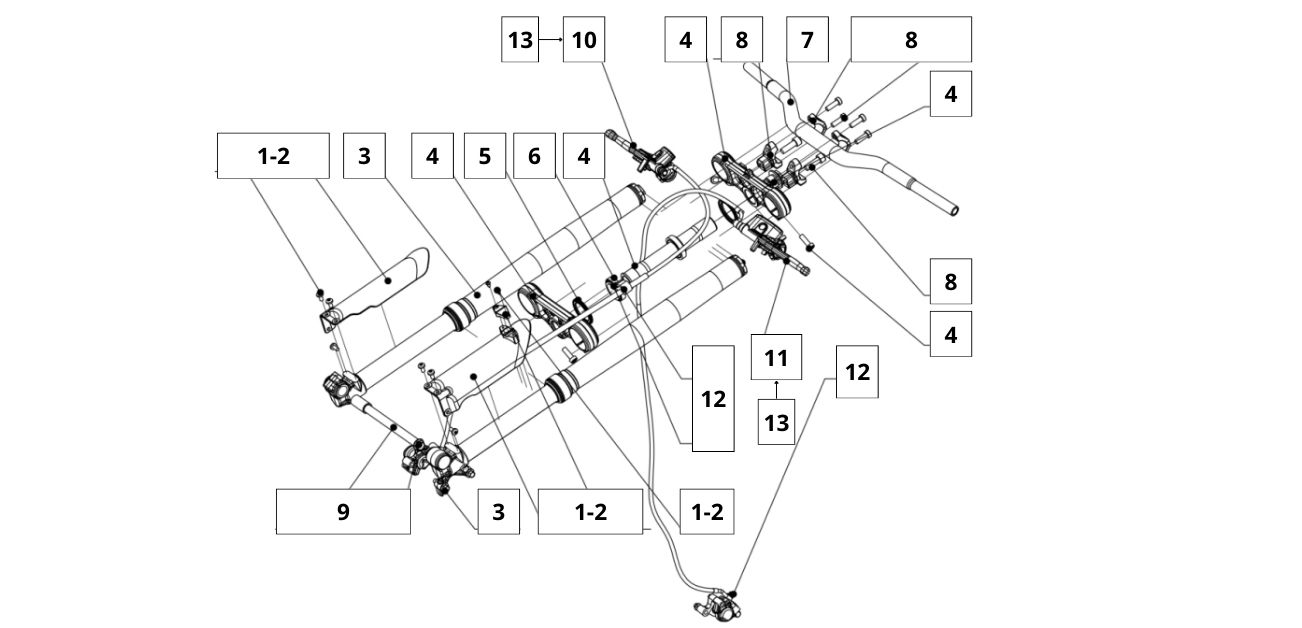

Fork assembly

Fork assembly
1
Front shock plastic cover red + bolt BE15-031

$49.99

Sold out

2
Front shock plastic cover black + bolt BE15-032

$49.99

Sold out

3
Front shock assy + bolt BE15-033

$399.99

Sold out

4
Steering stems + Clamps assy BE15-034

$149.99

Sold out

5
Dust seal lower cap BE15-035

$4.99

Sold out

6
Bearing BE15-036

$39.99

Sold out

7
Handlebar BE15-038

$59.99

Sold out

8
Handle bar raisers assy BE15-039

$49.99

Sold out

9
Front axle + bolt BE15-040

$49.99

Sold out

10
Front brake assy BE15-041

$149.99

Sold out

11
Rear brake assy BE15-037

$149.99

Sold out

12
Brake bolts assy BE15-081

$19.99

Sold out

13
Brake levers 2pcs BE15-082

$49.99

Sold out

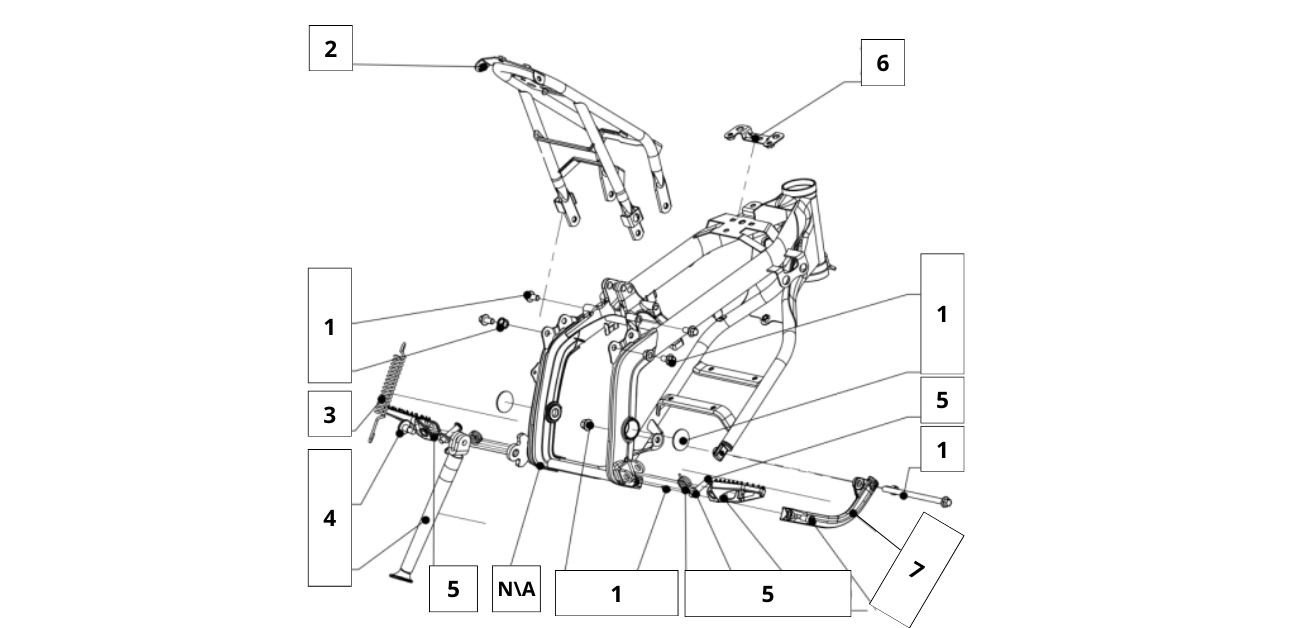

Frame assembly

Frame assembly
1
Frame bolts assy BE15-025

$29.99

Sold out

2
Tail bracket BE15-024

$79.99

Sold out

3
kickstand spring BE15-026

$14.99

Sold out

4
Kickstand + bolt BE15-027

$29.99

Sold out

5
Pedals assy BE15-028

$59.99

Sold out

6
Front side cover mounting bracket BE15-030

$9.99

Sold out

7
Lower frame connection beam + bolt BE15-029

$49.99

Sold out

Front wheel assembly

Front wheel assembly
1
Front wheel axle sleeves (2pcs) BE15-001

$29.99

Sold out

2
Front brake disc +bolts BE15-002

$29.99

Sold out

3
Complete front wheel 12 BE15-005

$189.99

Sold out

4
Front tire BE15-003

$99.99

Sold out

5
Front rim BE15-004

$99.99

Sold out

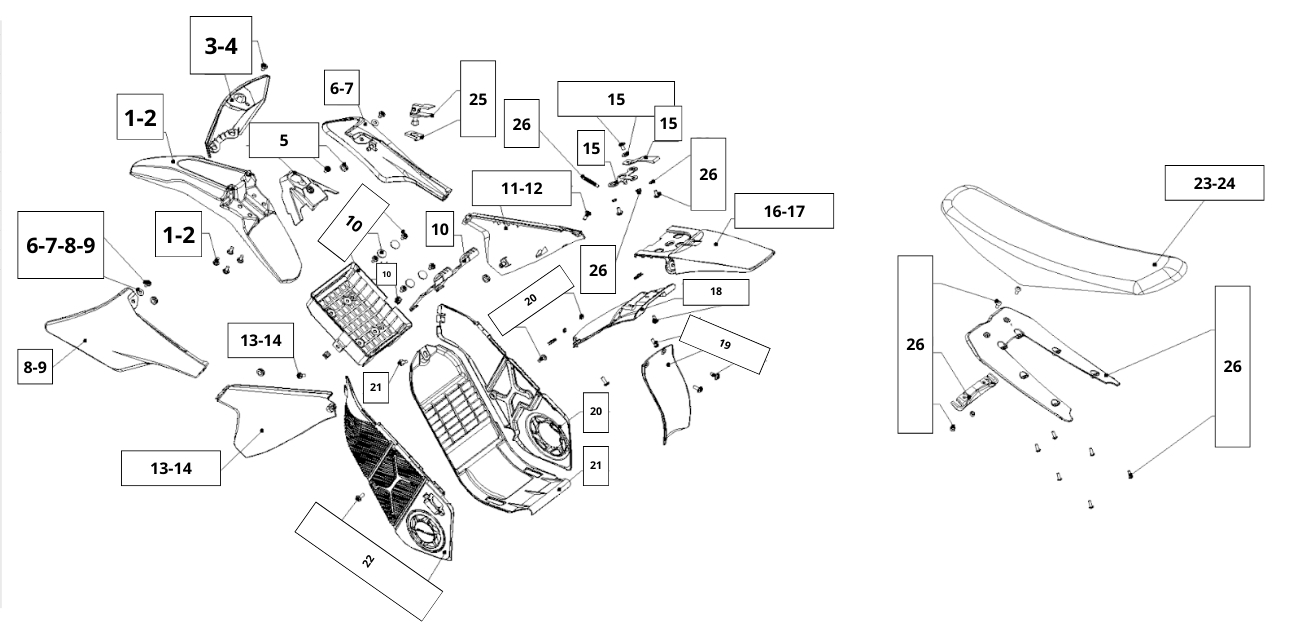

Plastic parts assembly

Plastic parts assembly
1
Front fender blue +Stikers BE15-053

$49.99

Sold out

2
Front fender black +Stikers BE15-054

$49.99

Sold out

3
number plate blue BE15-055

$29.99

Sold out

4
number plate black BE15-056

$29.99

Sold out

5
dispay installation cover BE15-057

$49.99

Sold out

6
front side cover_right Red BE15-058

$49.99

Sold out

7
front side cover_right black BE15-059

$49.99

Sold out

8
front side plate_left red BE15-073

$49.99

Sold out

9
front side plate_left black BE15-074

$49.99

Sold out

10
battery case assy BE15-060

$49.99

Sold out

11
rear side cover_right red BE15-061

$49.99

Sold out

12
rear side cover_right black BE15-062

$49.99

Sold out

13
Rear side plate_left red BE15-071

$49.99

Sold out

14
Rear side plate_left black BE15-072

$49.99

Sold out

15
seat fixing plate BE15-063

$19.99

Sold out

16
Rear fender Red BE15-064

$49.99

Sold out

17
Rear fender black BE15-065

$49.99

Sold out

18
controller dust cover BE15-066

$49.99

Sold out

19
Mud fender + bolts BE15-067

$49.99

Sold out

20
battery plastic cover_right BE15-068

$49.99

Sold out

21
lower guard plate BE15-069

$49.99

Sold out

22
battery plastic cover_left BE15-070

$49.99

Sold out

23
Seat blue BE15-075

$99.99

Sold out

24
Seat black BE15-076

$99.99

Sold out

25
Battery clamp assy BE15-083

$29.99

Sold out

26
Seat decorative cover + hardware BE15-077

$49.99

Sold out

27
sticker blue&red BE15-078

$79.99

Sold out

28
sticker Black BE15-079

$79.99

Sold out

Rear wheel assembly

Rear wheel assembly
1
Rear wheel axle BE15-006

$29.99

Sold out

2
Driven sprocket + bolts BE15-007

$29.99

Sold out

3
Complete front wheel 10 BE15-012

$189.99

Sold out

4
Rear rim BE15-008

$99.99

Sold out

5
Rear tire BE15-009

$99.99

Sold out

6
Rear disk brake + bolts BE15-010

$39.99

Sold out

7
Rear brake bracket assy BE15-011

$19.99

Sold out

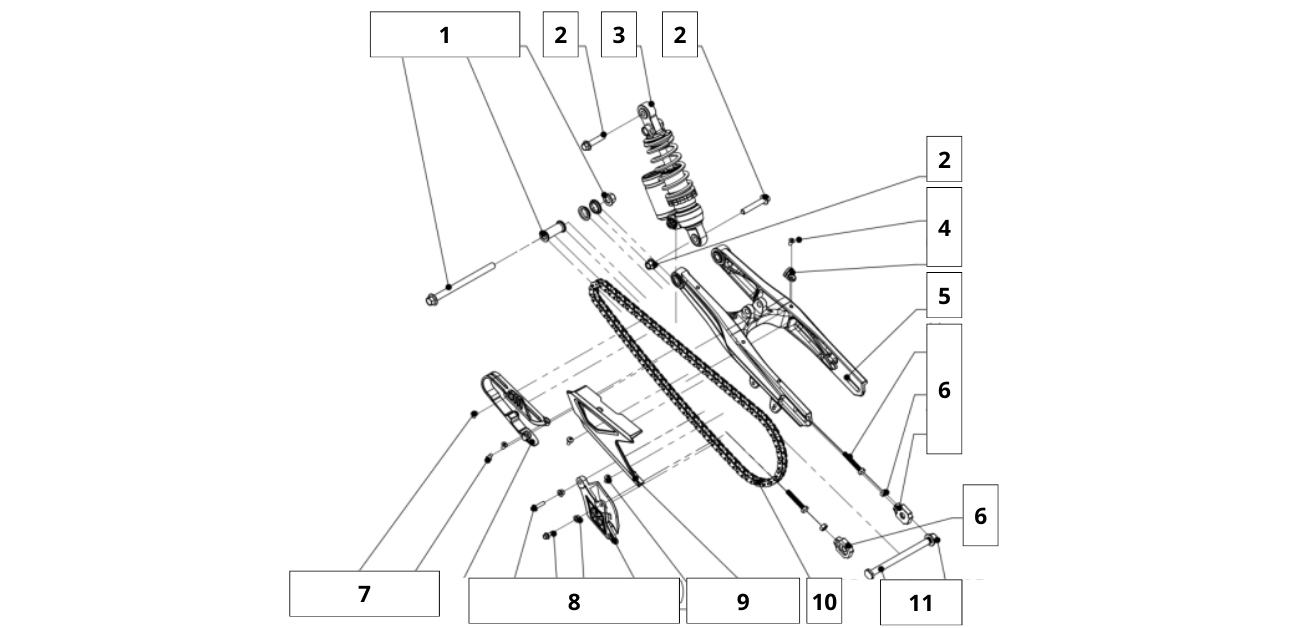

Suspension assembly

Suspension assembly
1
Center shaft assy BE15-013

$49.99

Sold out

2
Rear shock bolts assy BE15-014

$19.99

Sold out

3
Rear shock absorber assembly Gray BE15-015

$299.99

Sold out

4
Rear brake hose clips assy BE15-016

$9.99

Sold out

5
Rear fork BE15-017

$299.99

Sold out

6
Chain adjuster assy BE15-018

$49.99

Sold out

7
Rear fork protector assy BE15-019

$39.99

Sold out

8
Chain guide assy BE15-020

$49.99

Sold out

9
Chain cover + bolts BE15-021

$39.99

Sold out

10
Chain 415H-98 BE15-022

$39.99

Sold out

11
Rear axle + nut BE15-023

$39.99

Sold out
