RFN Warrior E500W

Home - Plans - RFN Warrior E500W

Forks and fender

Forks and fender
1
handlebar riser upper + bottom E250-036

$14.99

2
tripple clamp upper + bottom E250-037

$50.99

3
Forks set E500-018

$107.99

4
front fender Black E250-040-BK

$5.99

5
front fender Blue E250-040-BL

$5.99

6
front fender Red E250-040-RD

$5.99

7
number plate black E250-041-BK

$3.99

Frame, Seat and plastics

Frame, Seat and plastics
1
seat black E250-014

$28.99

2
screws and nuts E250-015

$3.99

3
Front plastic black E250-016-BK

$29.99

Sold out

4
Front plastic blue E250-016-BL

$29.99

Sold out

5
Front plastic Red E250-016-RD

$29.99

Sold out

6
head parts E250-017

$12.99

7
speed limiting switch E250-018

$4.99

8
Motor sides plastic set E250-019

$12.99

9
footrests set E250-020

$44.99

10
undershield E250-021

$6.99

11
BATTERY SX500 E500-012

$507.99

12
kickstand E250-023

$10.99

13
rear fender E250-024

$5.99

14
Controller E500 E500-014

$137.99

15
rear mud guard black E250-026

$13.99

16
side circle Black E250-027-BK

$3.99

17
side circle Blue E250-027-BL

$3.99

18
side circle red E250-027-RD

$3.99

19
sticker black E500-019

$46.99

20
sticker Blue E500-020

$46.99

21
sticker Red E500-021

$46.99

22
Lamp panel E500-013

$13.99

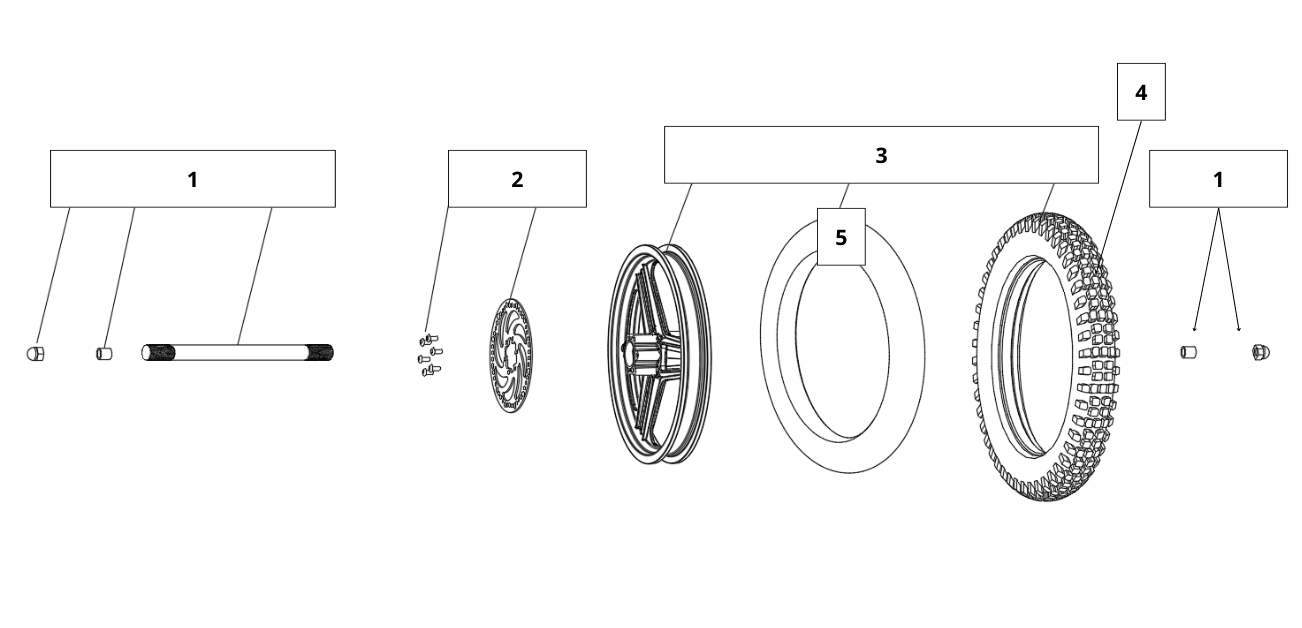

Front wheel

Front wheel
1
front axle E500-004

$17.99

2
front brake disc + bolts E500-005

$14.99

3
Complete front wheel E500-006

$111.99

4
Front tire E500-007

$25.99

5
TIRE TUBE 14x1.75 E500-023

$21.99

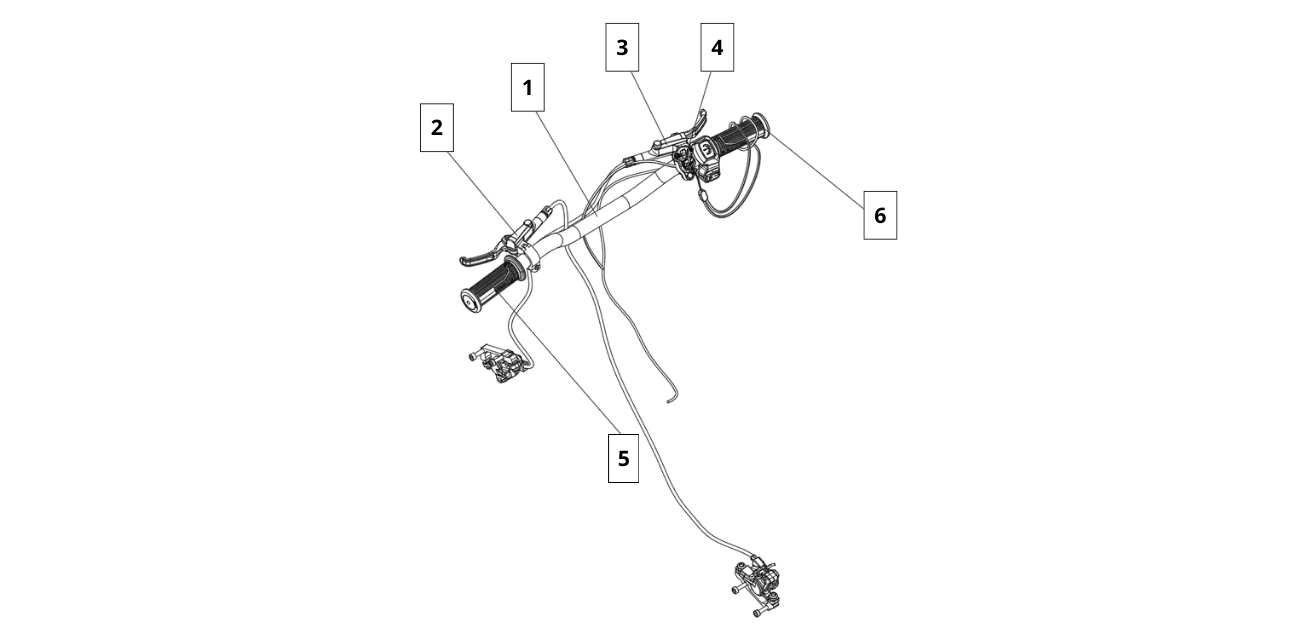

Handlebar and brakes

Handlebar and brakes
1
handlebar E250-002

$24.99

2
rear brake assy E500-001

$113.99

3
front brake assy E500-002

$109.99

4
safty switch E500-003

$28.99

5
grip L E250-004

$6.99

6
throttle E250-001

$39.99

Rear swing arm, rear shock and electric components

Rear swing arm, rear shock and electric components
1
Motor E500-015

$267.99

Sold out

2
Rear shock E250-029

$24.99

3
rear swing arm E250-030

$83.99

4
rear swing arm protective cover E250-031

$6.99

5
Chain E500-016

$16.99

6
chain cover E250-033

$7.99

7
rear swing arm centre shaft E250-034

$30.99

8
CHARGER SX500 E500-017

$126.99

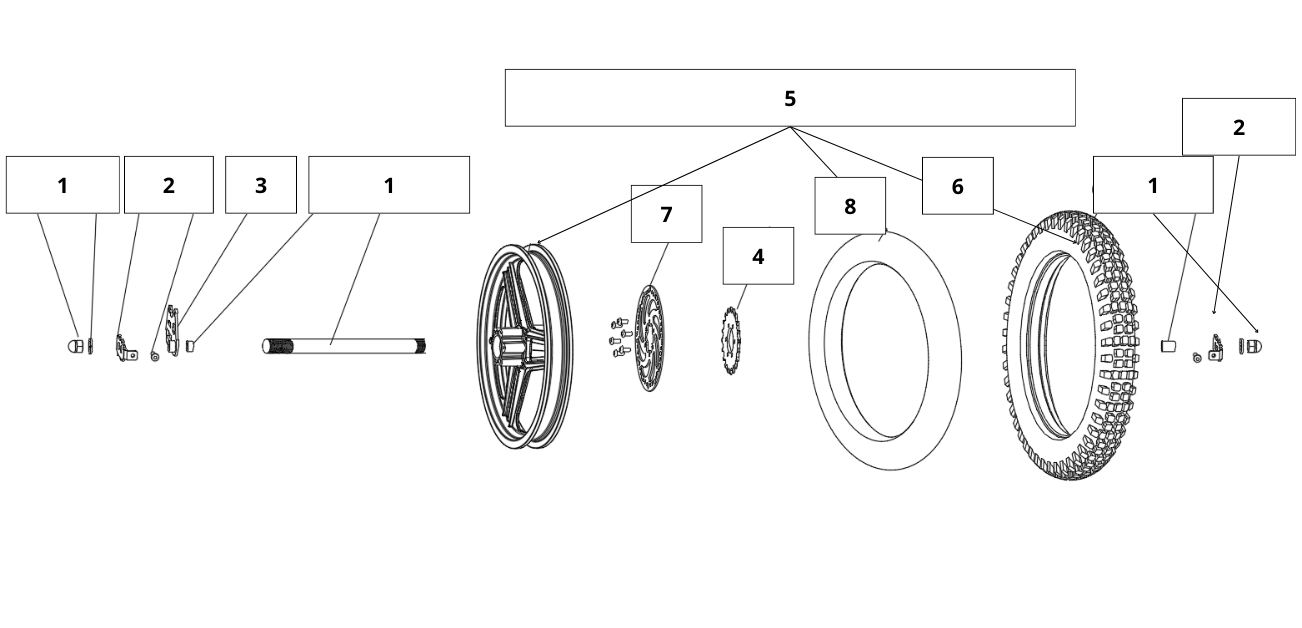

Rear wheel

Rear wheel
1
rear rim axle E250-009

$8.99

2
chain puller E250-010

$3.99

3
Disc brake holder E250-011

$5.99

4
Rear sprocket E500-009

$8.99

5
Complete rear wheel E500-010

$111.99

6
Rear tire E500-011

$25.99

7
front brake disc + bolts E500-005

$14.99

8
TIRE TUBE 14x1.75 E500-023

$21.99

9
TRAINING WHEELS WARRIOR 303015015001

$99.99
