HIRO COBRA 1200W

Home - Plans - HIRO COBRA 1200W

MOTOR & REAR SWING ARM

MOTOR & REAR SWING ARM
1
SHAFT M10*195*1.25 29897

$4.99

2
NYLON RING 32852

$2.99

3
LOCK NUT - M10*1.25 10196

$2.99

4
BOLT - M6*16 10368

$2.99

5
Motor 36V1200W PEQD-009

$199.99

6
REAR SWINGARM 10371

$42.99

7
DRIVE SHAFT RETAINING RING - LEFT 10274

$4.99

8
BOLT - M6*30 10275

$2.99

9
PLASTIC DISC PROTECTION 29899

$7.99

10
DRIVE SHAFT RETAINING RING - RIGHT 10273

$7.99

11
GROWER WASHER - Φ8 10374

$2.99

12
WASHER - Φ16*Φ8.2*1.5 10375

$2.99

13
LOCK NUT - M8 10024

$2.99

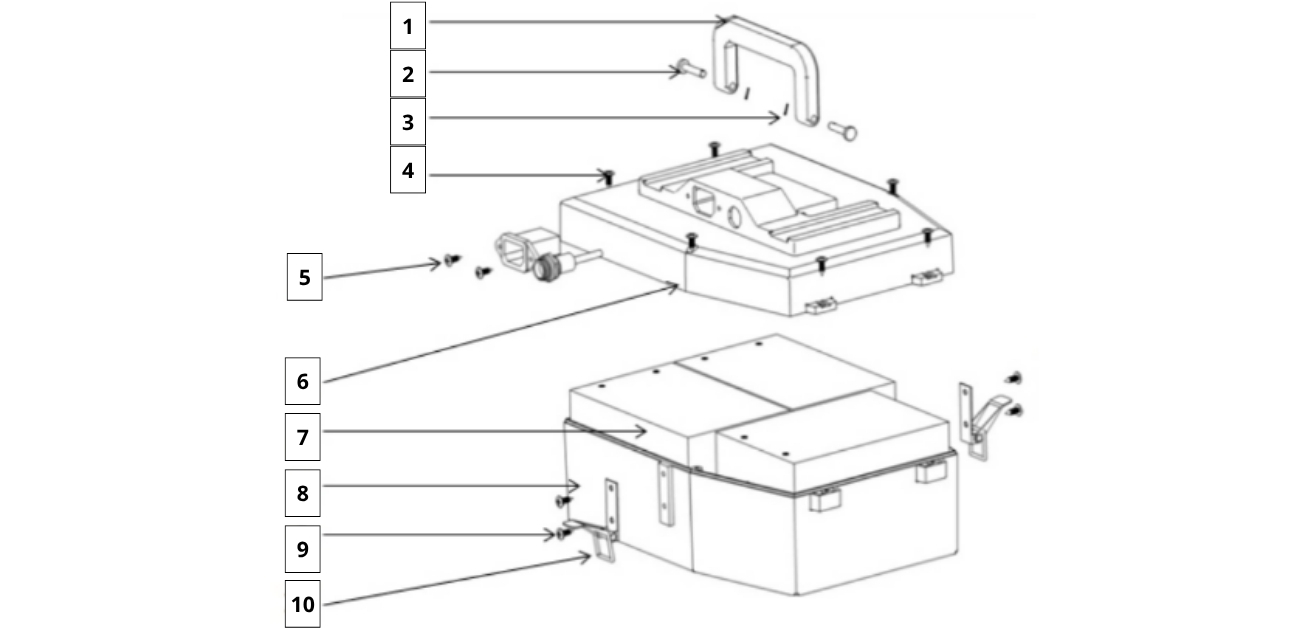

Battery Assy

Battery Assy
1
BATTERY COVER HANDLE 10685

$7.99

2
AXIS - Φ5X30 10693

$2.99

3
CLIP - 1.5X10 10694

$2.99

Sold out

4
BOLT - M4X16 10695

$2.99

5
BOLT - M4X12 10696

$2.99

6
UPPER BATTERY COVER 10686

$24.99

7
Lithium Battery 36V13AH,including the battery box PEQD-041

$499.99

8
LOWER BATTERY COVER 10688

$24.99

9
BOLT - M4X6 29864

$2.99

10
METAL BRACKET 10689

$2.99

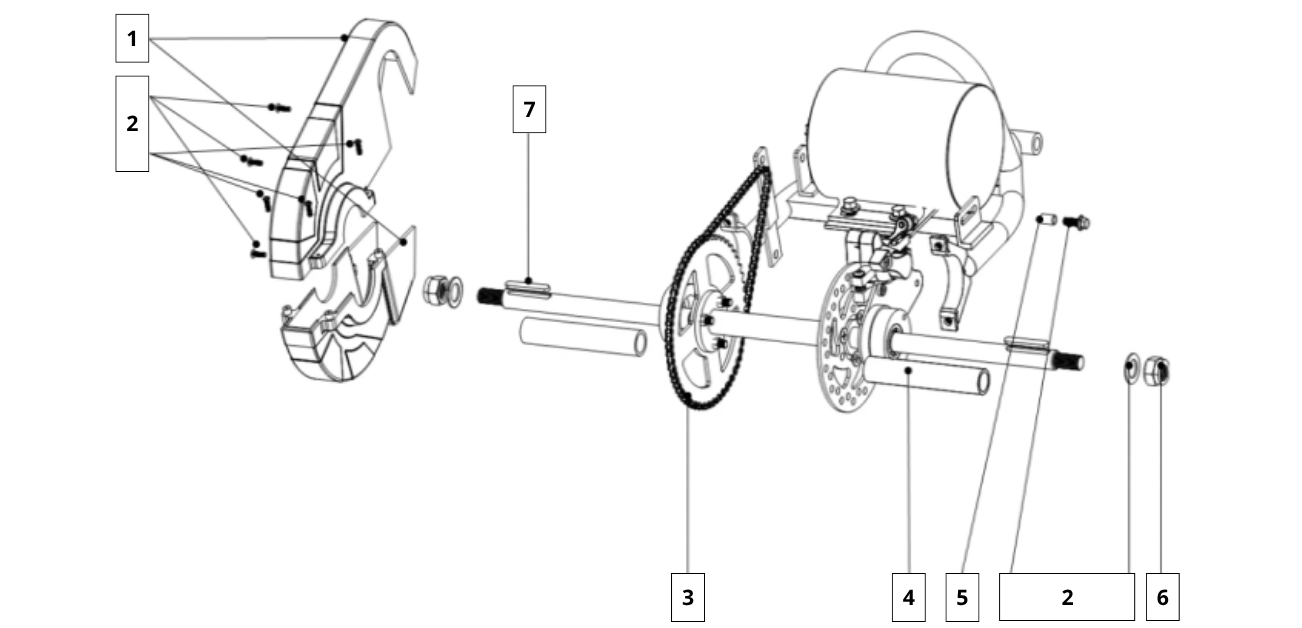

CHAIN & CHAIN COVER ASSY

CHAIN & CHAIN COVER ASSY
1
CHAIN ​​GUARD - COMPLETE (2 PCS) 10385

$24.99

2
Chain hardware kit PEQD-011

$9.99

3
CHAIN ​​- 25H-92 LINKS 10388

$19.99

4
SPACER - Φ20*Φ17*112 10296

$5.99

5
SPACER - Φ8*Φ6*14 10297

$2.99

6
LOCK NUT M14*1.5 10301

$2.99

7
KEY 40×6 10298

$2.99

8
Chain Connector PEQD-035

$19.99

ELECTRONIC PARTS

ELECTRONIC PARTS
1
FORWARD/REVERSE SWITCH 10710

$12.99

2
CHARGING PORT 10712

$9.99

3
HORN - 36V 10421

$12.99

4
36V/1200W Controller PEQD-019

$99.99

5
KEY - 3 POSITIONS 10424

$39.99

6
Rubber cover for Key 3-Speed Switch PEQD-020

$9.99

7
Electronic hardware PEQD-021

$9.99

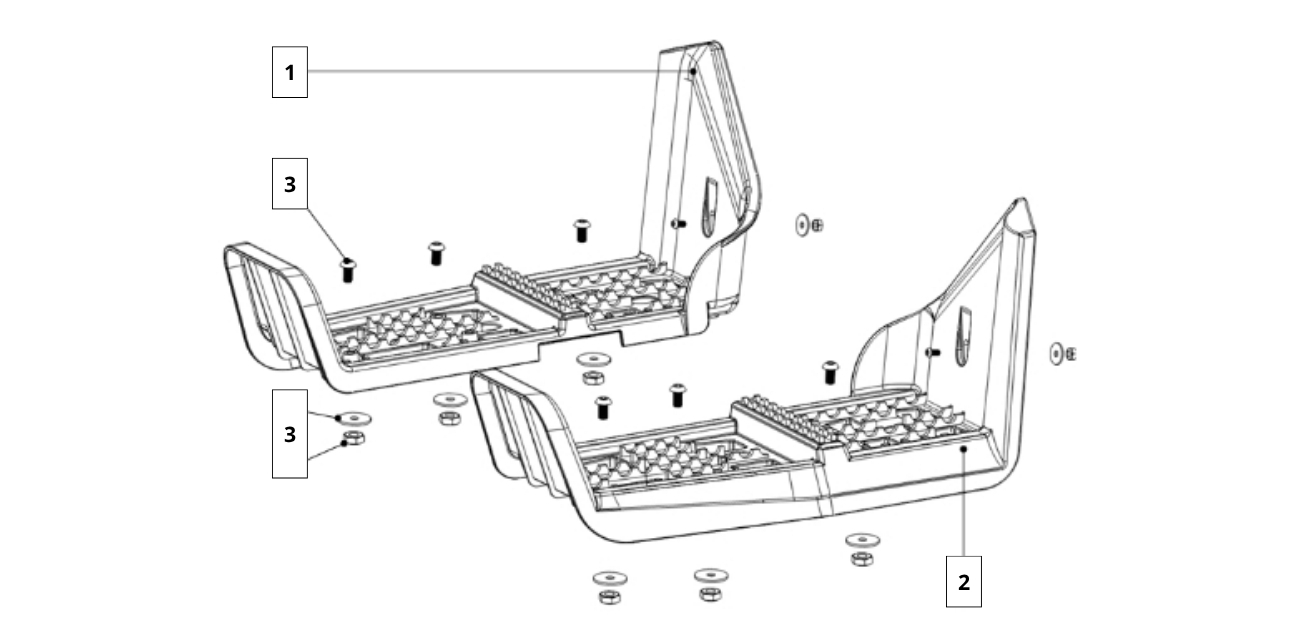

FOOTREST ASSY

FOOTREST ASSY
1
RIGHT FOOT REST 10303

$39.99

2
LEFT FOOT REST 10305

$39.99

3
Footrest hardware kit PEQD-012

$9.99

FRAME

FRAME
1
Frame hardware kit PEQD-003

$9.99

2
SPACER - Φ12*Φ1*34 10204

$5.99

3
UPPER/LOWER BRIDGE STEERING COLUMN 10205

$7.99

4
NUMBER PLATE HOLDER 10208

$5.99

5
STEERING COLUMN - L=380MM 29878

$17.99

6
BUMPER 32846

$12.99

7
UPPER BULL BAR BRACKET 32847

$2.99

8
LOWER BULL BAR BRACKET 32848

$2.99

9
FRONT SHOCK ABSORBER - Φ8*150-Φ4.5 10215

$49.99

10
REAR SHOCK ABSORBER - Φ7*125 32864

$49.99

11
LEFT FAIRING BRACKET 32850

$2.99

12
COBRA RIGHT REAR FAIRING SUPPORT 32851

$2.99

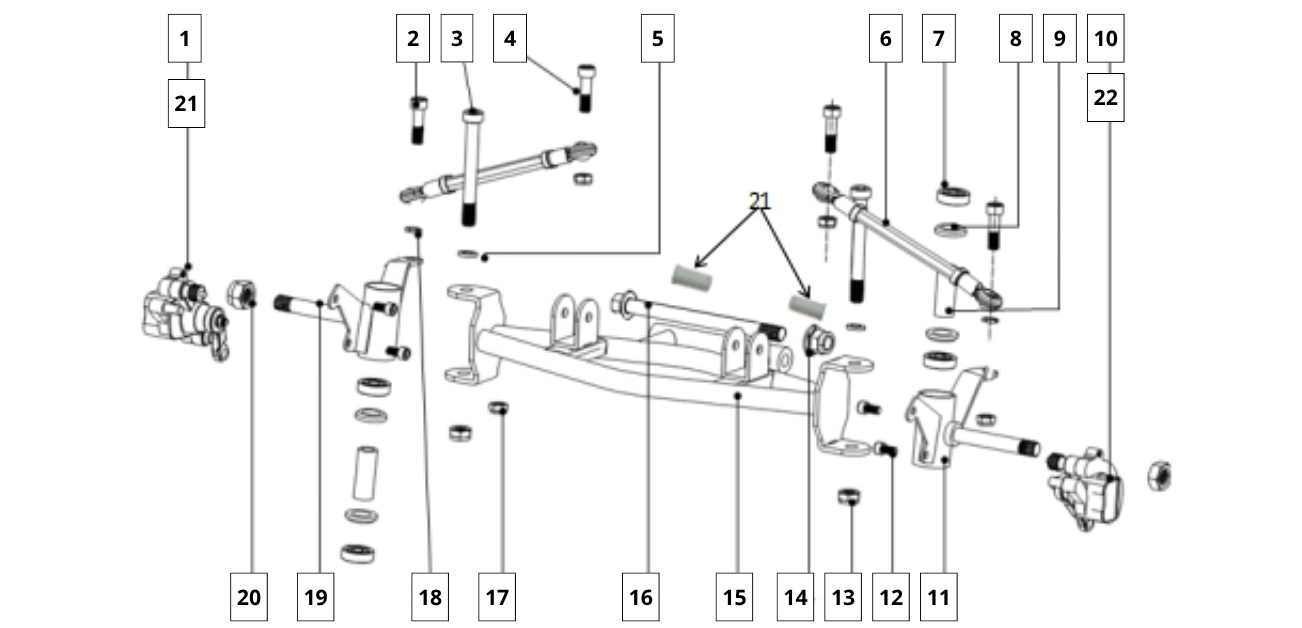

FRONT SWING ARM ASSY

FRONT SWING ARM ASSY
1
RIGHT BRAKE CALIPER BLACK 29879

$24.99

2
BOLT - M8*30 10183

$2.99

3
SHAFT - M10*85*1.5 10184

$4.99

4
BOLT - M8*25 10185

$2.99

5
WASHER - Φ10×Φ20×1.5 10186

$2.99

6
LINK - L=105MM 10187

$12.99

7
BEARING - 6000 10188

$6.99

8
RUBBER WASHER - 24*14*5 10189

$2.99

9
SPACER - Φ14*11*46.5 10493

$2.99

10
LEFT MECHANICAL BRAKE CALIPER 10047

$24.99

11
LEFT FRONT KNUCKLE (6 WHEEL) 10193

$19.99

12
BOLT - M6*12 10031

$2.99

13
LOCK NUT - M10*1.5 10195

$2.99

14
LOCK NUT - M10*1.25 10196

$2.99

15
FRONT SWINGARM 32837

$38.99

16
FRONT SWINGARM SHAFT M10*150*1.25 10198

$3.99

17
LOCK NUT - M8 10024

$2.99

18
WASHER - Φ8 10200

$2.99

19
RIGHT FRONT KNUCKLE (6 WHEEL) 10201

$19.99

20
LOCK NUT - M12*1.5 10202

$2.99

21
Front Brake Caliper, Right, Red PEQD-001

$19.99

22
Front Brake Caliper, Left, Red PEQD-002

$19.99

23
BRAKE PADS 10631

$9.99

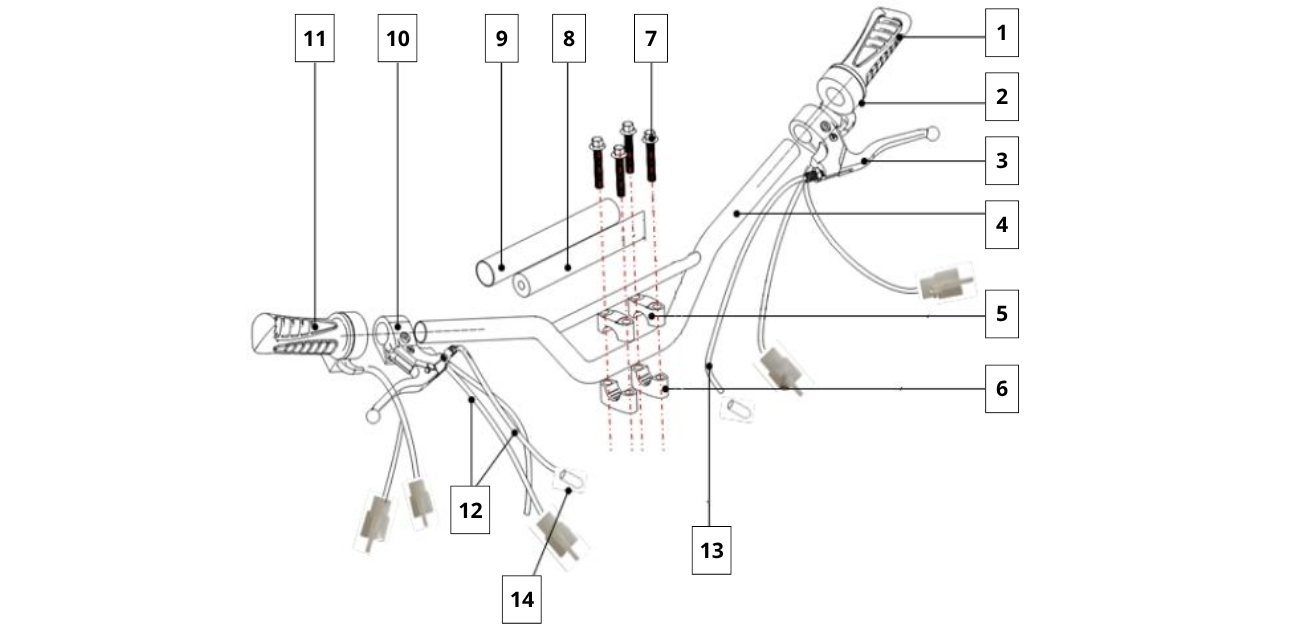

HANDLEBAR ASSY

HANDLEBAR ASSY
1
LEFT GRIP HANDLE 10345

$9.99

2
HORN BUTTON 10346

$10.99

3
REAR BRAKE LEVER (ELECTRIC STARTER) 10347

$19.99

4
HANDLEBAR L=545±5MM 10167

$24.99

5
Handlebar Upper Clamps 10171

$9.99

6
Handlebar lower Clamp 10177

$9.99

7
BOLT - M8*50 10203

$2.99

8
HANDLEBAR FOAM 10169

$4.99

9
FOAM PROTECTOR - Φ14XΦ35X170 10168

$4.99

10
FRONT BRAKE LEVER 10348

$19.99

11
Throttle Assy with 36V Electricity Meter ( Lithum) PEQD-040

$39.99

12
LEFT AND RIGHT FRONT BRAKE CABLE - 800×950MM (PAIR) 10179

$16.99

13
REAR BRAKE CABLE - 1200*1050MM 29928

$9.99

14
BRAKE CABLE CAP 10041

$2.99

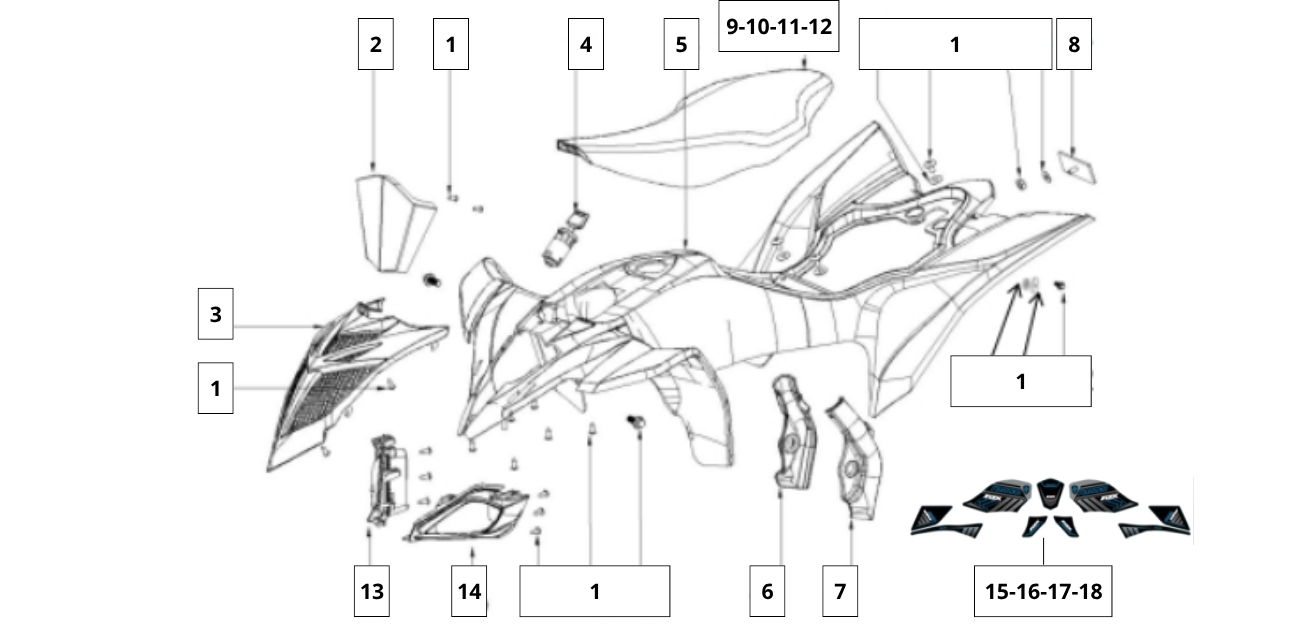

PLASTIC BODY KITS

PLASTIC BODY KITS
1
Plastics kit hardware PEQD-018

$9.99

2
NUMBER PLATE 10310

$7.99

3
Head fairing，Black PEQD-013

$19.99

4
KEY SWITCH 10065

$29.99

5
Plastic Body ，BLACK PEQD-017

$99.99

6
LEFT FRAME PLASTIC PROTECTION 29918

$9.99

7
RIGHT FRAME PLASTIC PROTECTION 29919

$9.99

8
REFLECTIVE 10318

$9.99

9
SEAT GREEN PEQD-016-GR

$39.99

10
SEAT ORANGE PEQD-016-OR

$39.99

11
SEAT PINK PEQD-016-PK

$39.99

12
SEAT RED PEQD-016-RD

$39.99

13
36V LED Lamp, R PEQD-014

$24.99

Sold out

14
36V LED Lamp, L PEQD-015

$24.99

Sold out

15
Complet sticker kit Green PEQD-036

$39.99

16
Complet sticker kit Orange PEQD-037

$39.99

17
Complet sticker kit Pink PEQD-038

$39.99

18
Complet sticker kit Red PEQD-039

$39.99

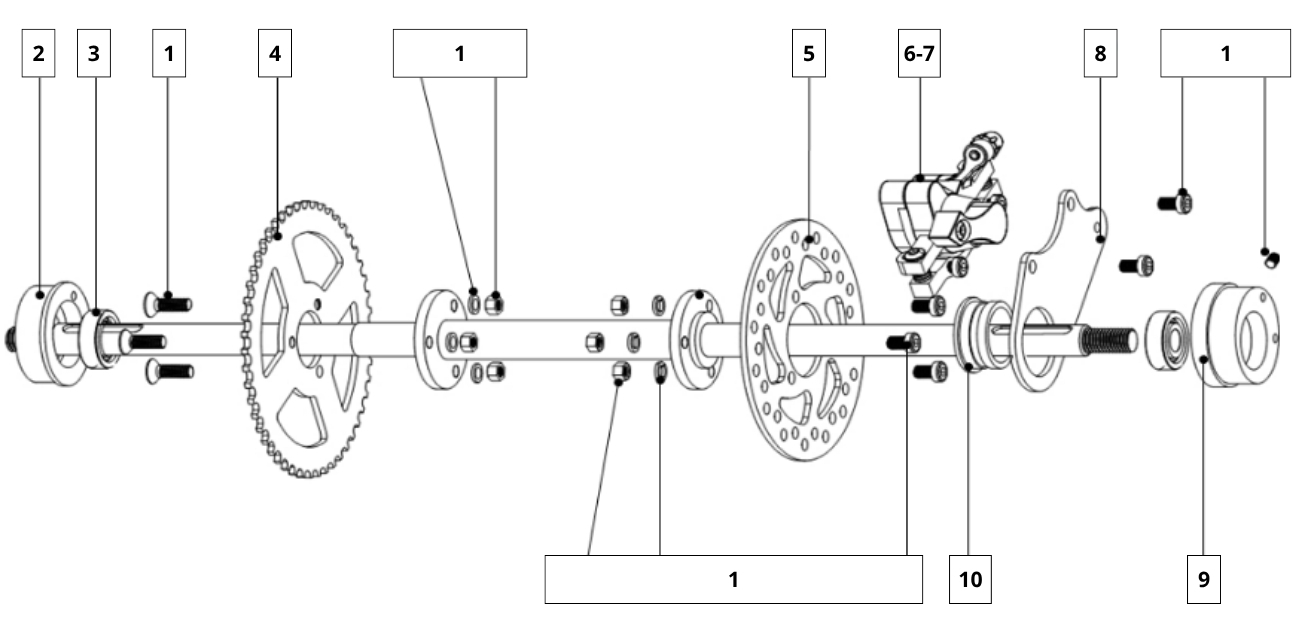

REAR WHEEL AXLE ASSY

REAR WHEEL AXLE ASSY
1
Rear wheel axle hardware PEQD-010

$9.99

2
LEFT ECCENTRIC Φ49*Φ35*16 10276

$9.99

3
BEARING - 6003RS 10277

$14.99

4
CROWN - 25H-72 TEETH 10377

$29.99

5
REAR BRAKE DISC - Φ140X2XΦ29 10282

$29.99

6
Rear Brake Caliper, RED PEQD-044

$19.99

Sold out

7
REAR BRAKE CALIPER BLACK 29902

$25.99

8
BRAKE CALIPER BRACKET 29903

$2.99

9
RIGHT ECCENTRIC Φ49*Φ35*22 10288

$9.99

10
SPACER Φ28×Φ35×16MM 29904

$2.99

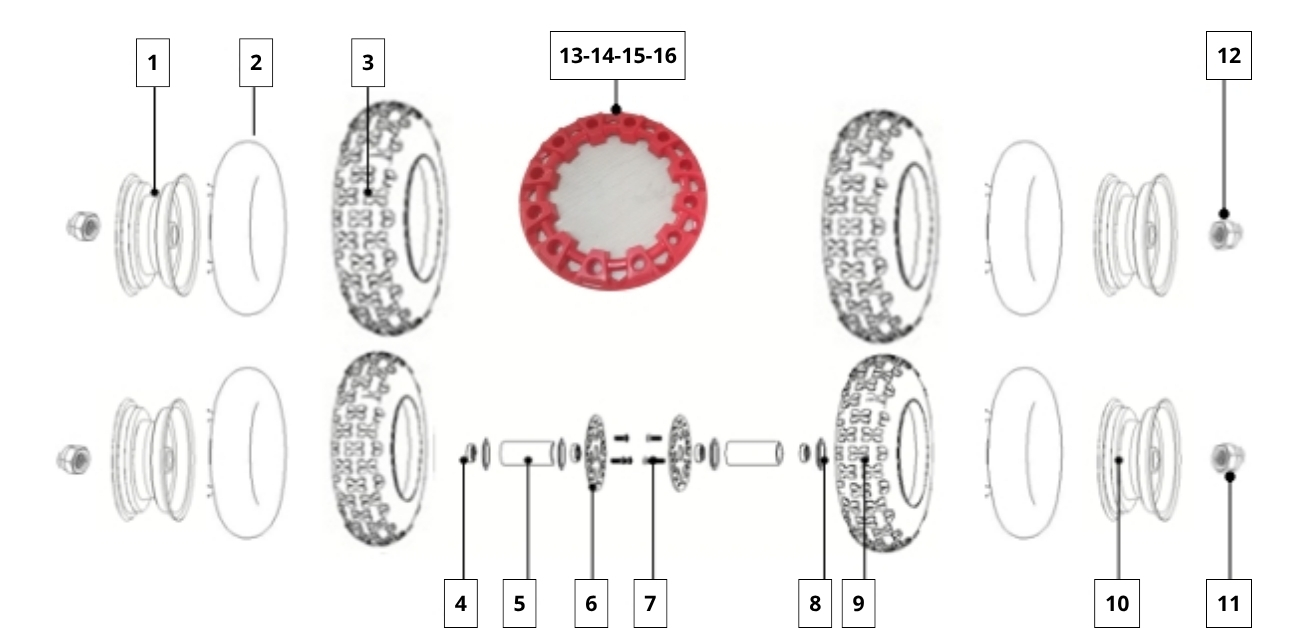

WHEEL & TIRE ASSY.

WHEEL & TIRE ASSY.
1
REAR RIM - 6 10259

$27.99

2
6INCH TUBE 10260

$16.99

Sold out

3
REAR TIRE 13X5.00-6 10261

$28.99

4
BEARING - 6001 10262

$9.99

5
FRONT WHEEL SPACER - Φ116*14*64.5 10263

$2.99

6
RIGHT BRAKE DISC Φ120×2×Φ37 29887

$18.99

7
BOLT M6*8 10159

$2.99

8
SPACER - Φ15*Φ25*5 29886

$2.99

9
FRONT TIRE - 4.10-6 10267

$47.99

10
FRONT RIM - 6 10268

$35.99

11
LEFT BRAKE DISC Φ120×2×Φ37 29885

$18.99

11
6'' FRONT WHEEL NUT CAP 33498

$0.99

12
Rear wheel nut cover PEQD-004

$9.99

13
Wheel Rim Cover 6inches，Red PEQD-005

$9.99

14
Wheel Rim Cover 6inches，Green PEQD-006

$9.99

15
Wheel Rim Cover 6inches，Orange PEQD-007

$9.99

16
Wheel Rim Cover 6inches，Pink PEQD-008

$9.99

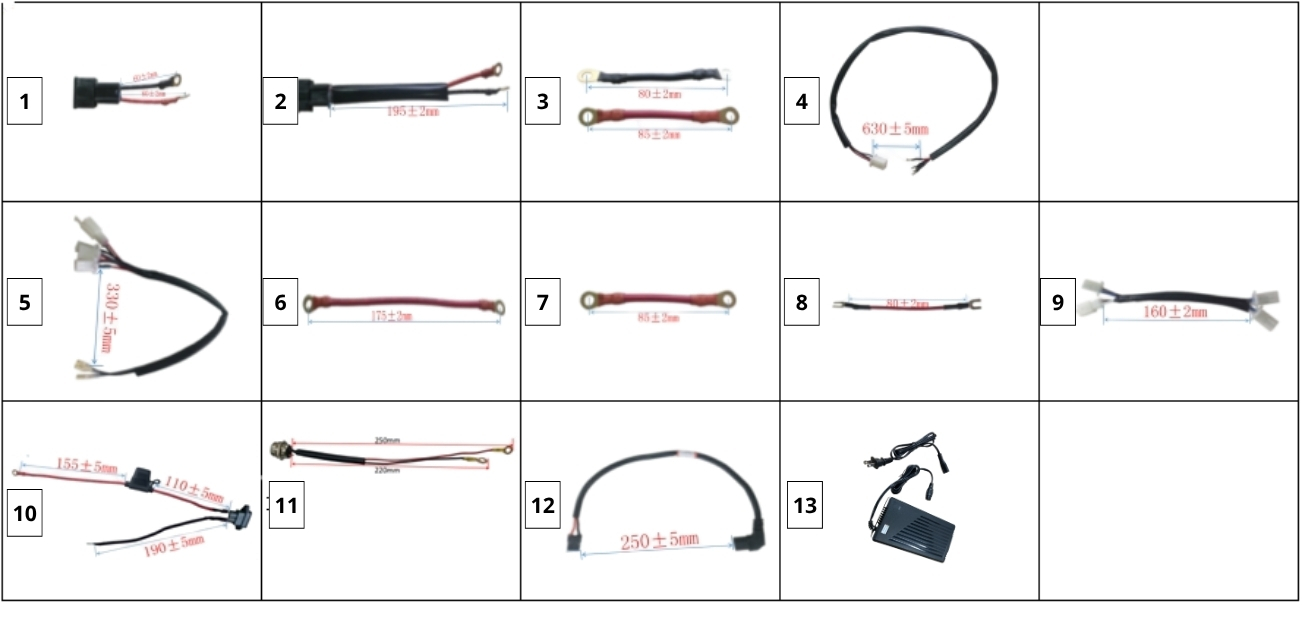

WIRINGS

WIRINGS
1
Controller Extended Wiring EQ1 PEQD-022

$9.99

2
Motor Extended Wiring EQ2 PEQD-023

$9.99

3
Reverse Convert Wiring EQ3Z PEQD-024

$9.99

4
Key 3-Speed Switch Wiring EQ4 PEQD-025

$19.99

5
Horn Wiring EQ5 PEQD-026

$19.99

6
Battery Wiring EQ8X PEQD-027

$19.99

7
Battery Wiring EQ8X PEQD-028

$19.99

8
Key 3-Speed Switch Branching Wiring EQ10X PEQD-029

$19.99

9
Lamp Wiring EQ11X PEQD-030

$3.99

Sold out

10
Fuse/power socket wirings EQ6G-4, FOR LEAD ACID BATTERY PEQD-031

$19.99

11
Fuse/power socket wirings EQ6G-1, FOR LITHIUM BATTERY PEQD-042

$19.99

12
Power supply wiring EQ7G PEQD-033

$19.99

13
Lithium battery Charger 42V2A PEQD-043

$89.99
